  1. Saab 9-5 Parts
  2. Engine
  3. Exhaust Manifold
  4. Exhaust Manifold & Turbo (3.0 V6)
Image Position
Brand
Part Number
Fitment Years
Description Inventory Buy
1

90490382

1998-2000
Exhaust Manifold

· Cyl 2, 4, 6 turbo

· Chassis: Up to --Y3040000

Currently Unavailable
$651.64
1

90490711

2002-2003

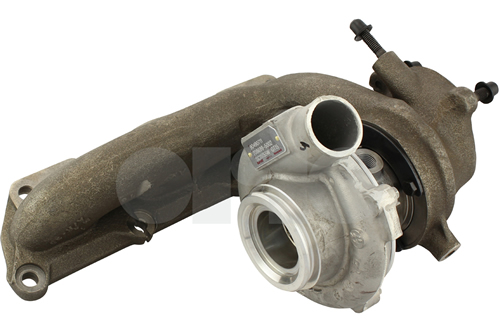

Exhaust Manifold

· Cyl 2, 4, 6 turbo

Back Ordered
$1660.57
Request Part

Howdy!

If you'd like to be notified when 90490711 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


• 2

90490326

1998-2003
Turbo Stud

· Included w/ #1

· Need: 3

Currently Unavailable
• 3

9182114

1998-2003
Screw

· Included w/ #1

2 in
$5.37
Buy
• 4

8049827

1998-2003
Spring Pin

· Included w/ #1

· Need: 2

4 in
$6.59
Buy
5

90490379

1998-2003

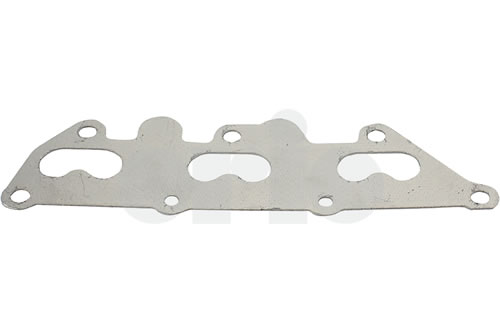

Gasket

· Cyl 2, 4, 6

· Chassis: Up to --Y3040000

No Longer Available
5

90490614

1998-2003
Gasket

· Cyl 2, 4, 6

· Chassis: From Y3040001--

Back Ordered
$15.58
Request Part

Howdy!

If you'd like to be notified when 90490614 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


6

90490191

1998-2003
Exhaust Manifold

· Cyl 1, 3, 5

· Chassis: Up to --Y3040000

Currently Unavailable
$605.90
6

5190814

1998-2003
Exhaust Manifold

· Cyl 1, 3, 5

· Chassis: From Y3040001--

Currently Unavailable
$398.95
• 7

11094672

1998-2003
Stud Screw

· Included w/ #6

· Need: 2

10 in
$6.36
Buy
8

9128515

1998-2003
Gasket

· Cyl 1, 3, 5

· Chassis: Up to --Y3040000

Back Ordered
$11.52
Request Part

Howdy!

If you'd like to be notified when 9128515 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


8

32019937

1998-2003

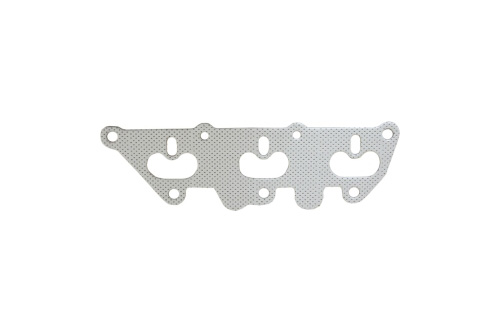

Exhaust Manifold Gasket (9-5 V6 3.0) [PROPARTS]

· Cyl 1, 3, 5

· Chassis: Up to --Y3040000

20+ in
$5.62
Buy
8

90490614

1998-2003
Gasket

· Cyl 1, 3, 5

· Chassis: From Y3040001--

Back Ordered
$15.58
Request Part

Howdy!

If you'd like to be notified when 90490614 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


9

90490309

1998-2003
Heat Shield

· Cyl 2, 4, 6

· Chassis: Up to --Y3040000

Available In
$37.91
Buy
9

4968103

1998-2003
Heat Shield

· Cyl 2, 4, 6

· Chassis: From Y3040001--

Currently Unavailable
$52.67
10

4443313

1998-2003
Heat Shield

· Cyl 1, 3, 5

Currently Unavailable
$30.55
11

90469888

1998-2003
Hose Clamp

· Need: 4

12 in
$2.00
Buy
11

90572964

1998-2003
Hose Clamp

· Chassis: From Y3040001--

10 in
$3.48
Buy
12

90490307

1998-2003
Tube
No Longer Available
15

9179045

1998-2003
Hose
Currently Unavailable
$4.70
• 17

90490303

1998-2003

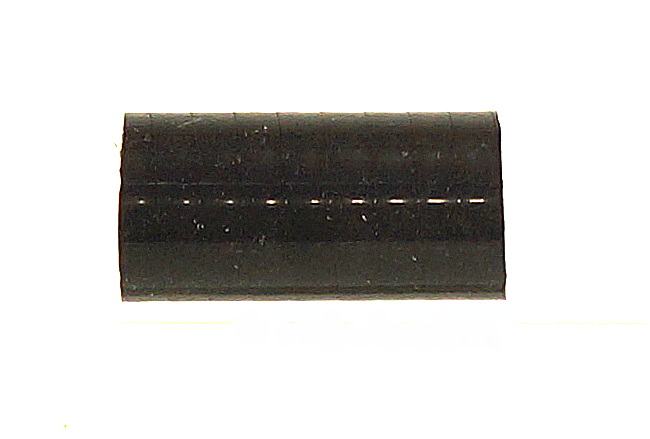

Hose

· Included w/ #16

No Longer Available
• 18

4685947

1998-2003
Hose Clamp

· Included w/ #16

· Need: 2

Currently Unavailable
$2.62
• 18

32019489

1998-2003
Hose Clamp [PROPARTS]

· Included w/ #16

· Need: 2

4 in
$1.42
Buy
20

90490336

1998-2003
O-ring
Currently Unavailable
$5.41
21

90490298

1998-2003
Tube
1 in
$50.23
Buy
21

90490298

1998-2003
Tube
1 in
$50.23
Buy
22

90490324

1998-2003
Banjo Screw

· Need: 2

Currently Unavailable
$8.13
23

8326704

1998-2003
Seal
Back Ordered
$1.29
Request Part

Howdy!

If you'd like to be notified when 8326704 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


24

11066422

1998-2003
Crush Washer

· Need: 3

· Min Order Qty: 2

20+ in
$1.40
Buy
25

90490306

1998-2003
Tube
1 in
$32.35
Buy
27

90490362

1998-2003
O-Ring - Inlet Pipe to Turbo
20+ in
$3.99
Buy
27

9990362

1998-2003
O-Ring - Inlet Pipe to Turbo [VITON] Saab 90490362

· Made of high quality Viton

20+ in
$3.95
Buy
28

11082413

1998-2003
Nut

· Need: 14

20+ in
$2.53
Buy
28

55557005

1998-2003
Lock Nut

· Chassis: From Y3040001--

Back Ordered
$0.63
Request Part

Howdy!

If you'd like to be notified when 55557005 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


29

90490455

1998-2003
Spacer Sleeve
6 in
$8.02
Buy
30

90490294

1998-2003
Tube

· Chassis: Up to --Y3040000

Back Ordered
$76.08
Request Part

Howdy!

If you'd like to be notified when 90490294 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


30

90490745

1998-2003
Tube

· Chassis: From Y3040001--

Back Ordered
$77.31
Request Part

Howdy!

If you'd like to be notified when 90490745 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


31

11093881

1998-2003
Screw

· Need: 4

3 in
$2.20
Buy
33

9179409

1998-2003
Hose
Available In
$7.05
Buy
35


1998-2003
Return Pipe Moved - Go To
36


1998-2003
Thermostat Housing Moved - Go To
37

30580035

1998-2003
Plug
Back Ordered
$1.17
Request Part

Howdy!

If you'd like to be notified when 30580035 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


38

90490308

1998-2003
Brace

· Engine ID: --570830

Back Ordered
$2.14
Request Part

Howdy!

If you'd like to be notified when 90490308 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team


38

5955281

1998-2003
Brace

· Engine ID: 570831--

Currently Unavailable
39

11095761

1998-2003
Screw

· Engine ID: --570830

· Need: 2

Available In
$3.13
Buy
39

11095761

1998-2003

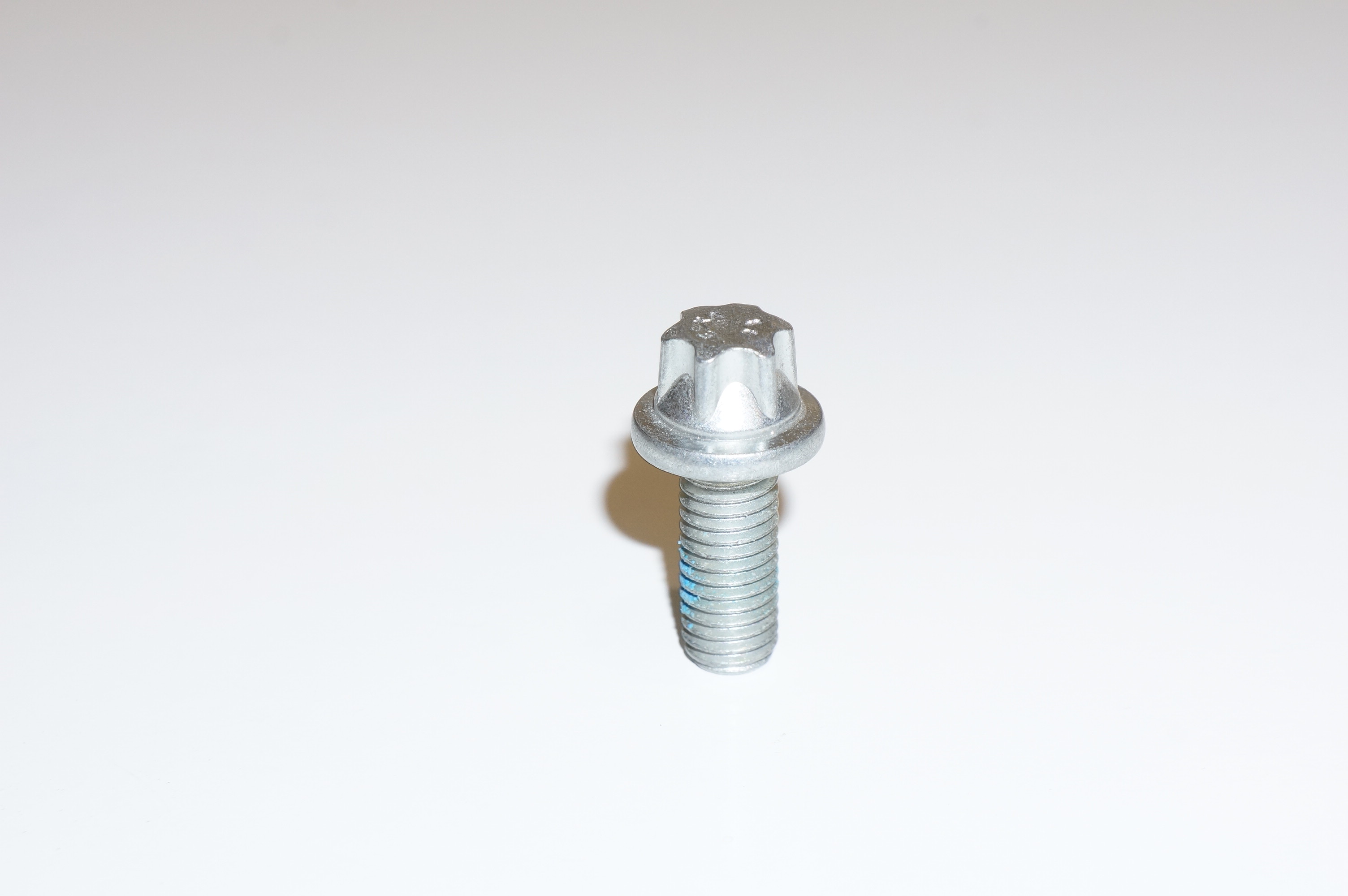

Screw

· Engine ID: 570831--

Available In
$3.13
Buy
40

90542114

1998-2003

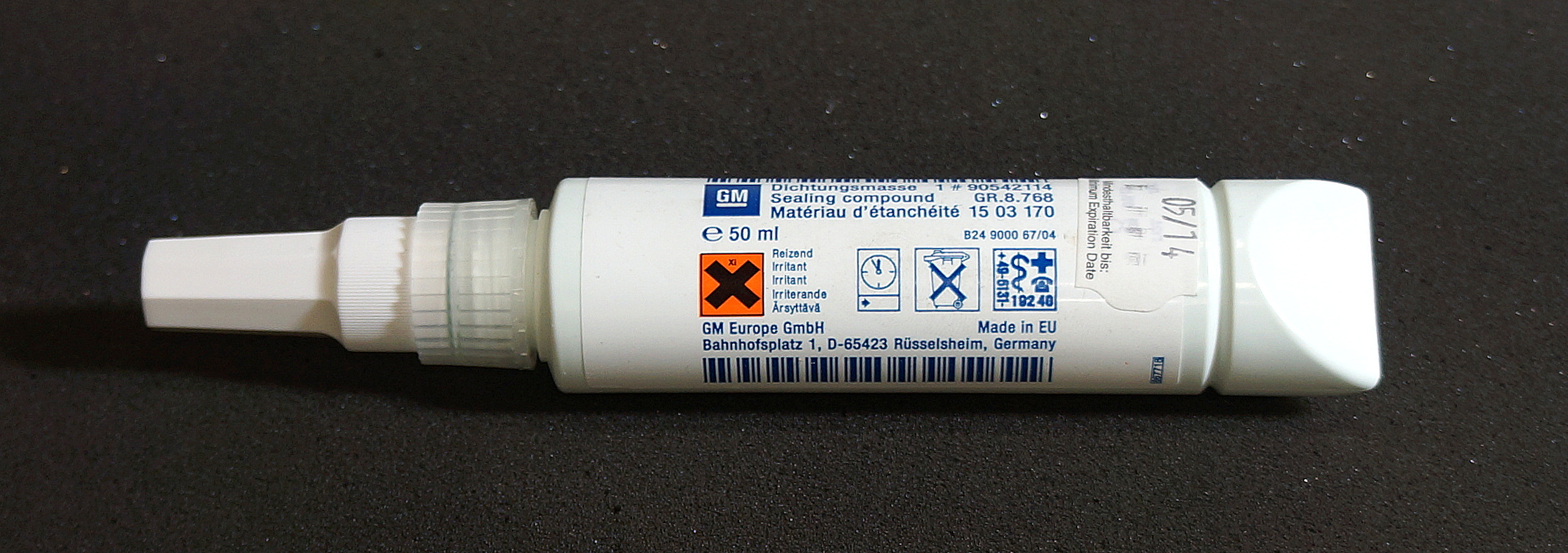

Flange Sealant
No Longer Available
41


1998-2003
Evacuation Pipe Moved - Go To
