  1. Saab 9-5 Parts
  2. Engine
  3. Crankshaft & Piston
  4. Crankshaft & Piston (B308)
Image Position
Brand
Part Number
Fitment Years
Description Inventory Buy
1

90509018

1998-2003
Crankshaft

Loading availability…
Loading…
Add to Cart
2

90444001

1998-2003
Main Bearing

· STD (NO. 1)

Loading availability…
Loading…
Add to Cart
2

90444002

1998-2003
Main Bearing

· -025 (NO. 1)

· Undersize

Loading availability…
Loading…
Add to Cart
2

90444005

1998-2003
Main Bearing

· -0, 50 (NO. 1)

· Undersize

Loading availability…
Loading…
Add to Cart
3

9117252

1998-2003
Main Bearing

· STD (NO. 2, 3)

· Need: 2

· Upper

Loading availability…
Loading…
Add to Cart
3

9117255

1998-2003
Main Bearing

· -0, 25 (NO. 2, 3)

· Need: 2

· Undersize. upper

· Chassis: From Y3040001--

Loading availability…
Loading…
Add to Cart
3

9117256

1998-2003
Main Bearing

· -0, 50 (NO. 2, 3)

· Need: 2

· Undersize. upper

Loading availability…
Loading…
Add to Cart
4

9117255

1998-2003
Main Bearing

· -0, 25 (NO. 2, 3)

· Need: 2

· Lower undersize

Loading availability…
Loading…
Add to Cart
4

9117256

1998-2003
Main Bearing

· -0, 50 (NO. 2, 3)

· Need: 2

· Lower undersize

Loading availability…
Loading…
Add to Cart
5

90444006

1998-2003
Main Bearing

· STD (NO.4)

Loading availability…
Loading…
Add to Cart
5

90444007

1998-2003
Main Bearing

· -0, 25 (NO. 4)

· Undersize

Loading availability…
Loading…
Add to Cart
5

8821746

1998-2003
Main Bearing

· -0, 50 (NO. 4)

· Undersize

Loading availability…
Loading…
Add to Cart
6

9195508

1998-2003
Connecting Rod

· Only together with bearing 94 83 686 or 94 83 702

Loading availability…
Loading…
Add to Cart
• 7

90467192

1998-2003
Screw

· Included w/ #6

· Need: 12

Loading availability…
Loading…
Add to Cart
•


1998-2003
Connecting Rod

· Included w/ #6

· Need: 6

· Not as separate spare part

8

9195509

1998-2003
Big End Bearing Kit

· STD

· Need: 6

· When changing bearings on my1998-99 connecting rod 93 99 577 must be fitted

Loading availability…
Loading…
Add to Cart
8

9483702

1998-2003
Big End Bearing Kit

· NLS

· -0, 25

· Need: 6

· Undersize. when changing bearings on my1998-99 connecting rod 93 99 577 must be fitted

Loading availability…
Loading…
Add to Cart
9

90490663

1998-2003
Piston

· Class 8. cyl.diam. 85, 976-85, 985 MM

· Need: 6

Loading availability…
Loading…
Add to Cart
9

90490664

1998-2003
Piston

· Class 99. cyl.diam. 85, 986-85, 995 MM

· Need: 6

Loading availability…
Loading…
Add to Cart
9

90490665

1998-2003
Piston

· Class 00. cyl.diam. 85, 996-86, 005 MM

· Need: 6

Loading availability…
Loading…
Add to Cart
9

90490666

1998-2002
Piston

· Class 01. cyl.diam. 86, 006-86, 015 MM

· Need: 6

Loading availability…
Loading…
Add to Cart
9

90490666

2003-2003
Piston

· Class 01. cyl.diam. 86, 006-86, 015 MM

· Need: 6

Loading availability…
Loading…
Add to Cart
9

90490667

1998-2003
Piston

· Class 02. cyl.diam. 86, 016-86, 025 MM

· Need: 6

Loading availability…
Loading…
Add to Cart
9

90490668

1998-2003
Piston

· Class ÖD. cyl.diam. 86, 465-86, 475 MM

· Need: 6

· Oversize

Loading availability…
Loading…
Add to Cart
•


1998-2003
Gudgeon Pin

· Included w/ #9

· Not as separate spare part

• 10

8822413

1998-2003
Piston Ring Kit

· Included w/ #9

· STD

Loading availability…
Loading…
Add to Cart
• •

90509740

1998-2003
Oil Scraper Ring

· Included w/ #10

Loading availability…
Loading…
Add to Cart
• •


1998-2003
Spacer Ring

· Included w/ #10

· Not as separate spare part

• 10

8822421

1998-2003
Piston Ring Kit

· Included w/ #9

· Oversize

Loading availability…
Loading…
Add to Cart
• •

8822454

1998-2003
Compression Ring

· Included w/ #10

· Not as separate spare part

Loading availability…
Loading…
Add to Cart
• •

8822462

1998-2003
Compression Ring

· Included w/ #10

· Not as separate spare part

Loading availability…
Loading…
Add to Cart
• •


1998-2003
Oil Scraper Ring

· Included w/ #10

· Need: 2

· Not as separate spare part

• •


1998-2003
Spacer Ring

· Included w/ #10

· Not as separate spare part

• 11

90501450

1998-2003
Lock Ring

· Included w/ #9

· Need: 2

Loading availability…
Loading…
Add to Cart
12


1998-2003
Pulley

Moved — Go To
13


1998-2003
Crankshaft Gear

Moved — Go To
14


1998-2003
Aperture Disc

Moved — Go To
15


1998-2003
Screw

Moved — Go To
16

90490709

2002-2003
Companion Flange

Loading availability…
Loading…
Add to Cart
16A


1998-2001
Screw

Moved — Go To

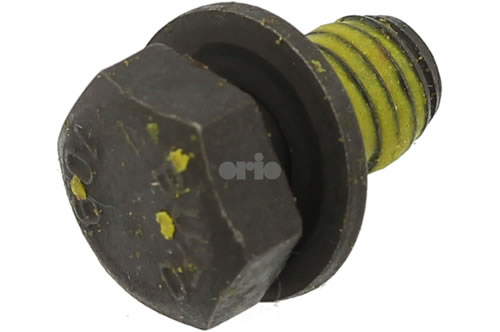

16A

92152207

2002-2003
Screw

· Need: 6

Superseded by
90490709

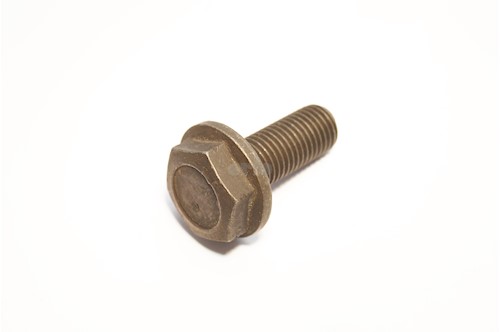

17

9126505

1998-2003
Screw

· M10 x 25 MM

· Need: 8

Loading availability…
Loading…
Add to Cart
18

24427917

1998-2003
Bearing Carrier

· Chassis: From 13031007--

Loading availability…
Loading…
Add to Cart
