Saab parts, done right.
  1. Saab 9-3 Parts
  2. Suspension & Wheels
  3. Rear Axle
  4. Rear Axle (FWD)
Image Position
Brand		 Part Number
Fitment Years		 Description Inventory Buy
1
12787125

2003-2004
 Rear Subframe (2003-2004 4D)
Loading availability…
Loading…
Add to Cart
1
12756396

2005-2005
 Rear Subframe (2005 4D)
Loading availability…
Loading…
Add to Cart
1
12761536

2006-2012
 Rear Subframe (FWD 4D/5D 06-11)

· 4D, 5D
Loading availability…
Loading…
Add to Cart
1
12831642

2004-2012
 Rear Subframe (Convertible)

· CV
Loading availability…
Loading…
Add to Cart
• 2
12786340

2003-2004
 Bushing

· Included w/ #1

· Front

· Need: 2
Loading availability…
Loading…
Add to Cart
• 2
12762370

2006-2012
 Bushing

· Included w/ #1

· 4D, 5D

· Front

· Need: 2
Loading availability…
Loading…
Add to Cart
2
12831239

2004-2005
 Bushing

· CV

· Front

· Need: 2
Superseded by
32021866
2
32021866

2004-2005
 Subframe Bushing - Front (Convertible)

· Need: 2
Loading availability…
Loading…
Add to Cart
• 3
12786341

2003-2012
 Bushing

· Included w/ #2

· 4D, 5D

· Rear

· Need: 2
Loading availability…
Loading…
Add to Cart
3
12831239

2004-2012
 Bushing

· CV

· Rear

· Need: 2
Superseded by
32021866
3
32021866

2004-2012
 Subframe Bushing - Front (Convertible)

· Need: 2
Loading availability…
Loading…
Add to Cart
4
12799589

2003-2004
 Spindle Housing

· LH
Loading availability…
Loading…
Add to Cart
4
12756708

2005-2012
 Spindle Housing

· LH
Loading availability…
Loading…
Add to Cart
4
12799590

2003-2004
 Spindle Housing

· RH
Loading availability…
Loading…
Add to Cart
4
12756709

2005-2012
 Spindle Housing

· RH
Loading availability…
Loading…
Add to Cart
• 10
24469643

2005-2012
 Outer Bushing - Rear Lower Control Arm

· Included w/ #4

· Need: 2
Loading availability…
Loading…
Add to Cart
10
9801215

2005-2012
 Outer Bushings - Rear Lower Control Arm [POWERFLEX] Saab 24469643

· Outer

· Powerflex PFR80-1215
Loading availability…
Loading…
Add to Cart
5
24417090

2003-2011
 Cross Stay

· Lower

· Need: 2
Loading availability…
Loading…
Add to Cart
5-INNER-BUSH
9801216

2003-2011
 Inner Bushings - Rear Lower Control Arm [POWERFLEX] Saab 24417090

· Inner

· Fits inner bushings of Saab 24417090 control arm

· Powerflex PFR80-1216
Loading availability…
Loading…
Add to Cart
6
32021925

2003-2012
 Rear Control Arm - Upper (FWD)

· Need: 2
Loading availability…
Loading…
Add to Cart
6
7931925

2003-2012
 Rear Control Arm - Upper (FWD) [ESAABKITS] Saab 32021925

· High quality aftermarket alternative to the OEM part.

· Made in Europe

· Need: 2
Loading availability…
Loading…
Add to Cart
6-OUTER-BUSH
9801217

2003-2012
 Upper Rear Control Arm - Outer Bushings [POWERFLEX] Saab 13230274 32021925

· Fits Saab control arm 13230274/32021925

· Outer

· 38mm

· Powerflex PFR80-1217
Loading availability…
Loading…
Add to Cart
6-INNER-BUSH
9801212

2003-2012
 Upper Rear Control Arm - Inner Bushings [POWERFLEX] Saab 13230274 32021925

· Fits Saab control arm 13230274/32021925

· Inner

· Powerflex PFR80-1212
Loading availability…
Loading…
Add to Cart
7
32021906

2003-2011
 Cross Stay - Rear
Loading availability…
Loading…
Add to Cart

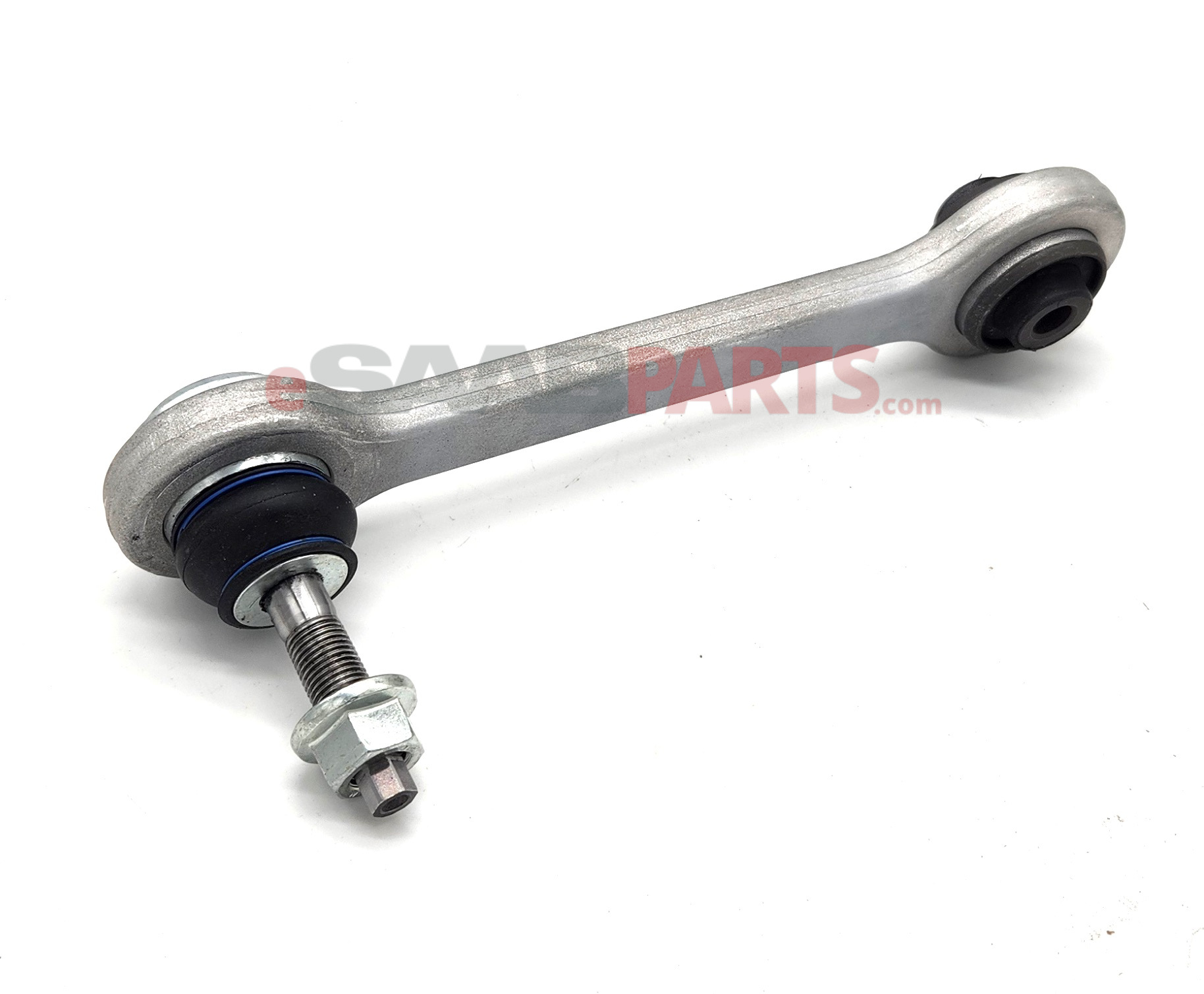

7
8933813

2003-2011
 Cross Stay - Rear (FWD) [ESAABKITS] Saab 32021906

· High quality aftermarket alternative to the OEM part.

· Made in Europe
Loading availability…
Loading…
Add to Cart

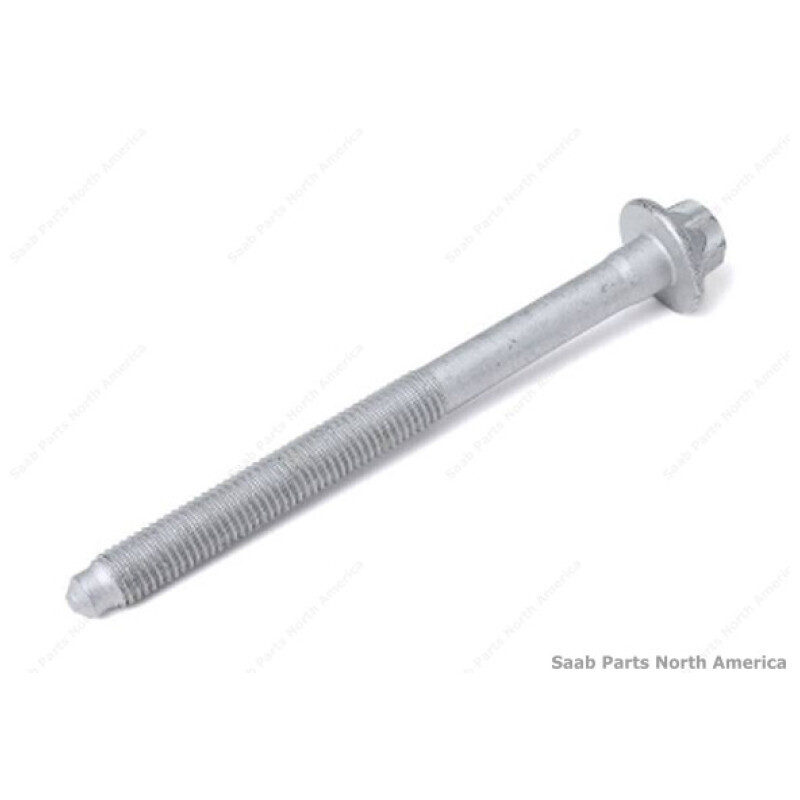

8
32022419

2003-2004
 Screw

· Need: 4
Loading availability…
Loading…
Add to Cart
8
11589278

2005-2005
 Hexagon Screw

· Need: 4

· Chassis: Up to --51044660
Loading availability…
Loading…
Add to Cart
8
32022419

2005-2011
 Screw

· Need: 4

· Chassis: From 51044661--
Loading availability…
Loading…
Add to Cart
8
11102621

2004-2012
 Hexagon Screw

· CV

· Need: 4
Loading availability…
Loading…
Add to Cart
9
24466639

2003-2011
 Protecting Casing

· RH
Loading availability…
Loading…
Add to Cart
10
24469643

2003-2004
 Outer Bushing - Rear Lower Control Arm

· Need: 2
Loading availability…
Loading…
Add to Cart
10
9801215

2003-2004
 Outer Bushings - Rear Lower Control Arm [POWERFLEX] Saab 24469643

· Outer

· Powerflex PFR80-1215
Loading availability…
Loading…
Add to Cart
12
24457381

2005-2005
 Rear Sway Bar 17mm Standard Chassis

Suspension Code: 3

· diam = 17 MM
Loading availability…
Loading…
Add to Cart
12
24457382

2005-2005
 Rear Sway Bar 18mm Sport Chassis

Suspension Code: 1

· diam = 18 MM sport chassis
Loading availability…
Loading…
Add to Cart
12
24457383

2003-2004
 Rear Sway Bar 19mm Sport Chassis

Suspension Code: 2

· diam = 19 MM sport chassis
Loading availability…
Loading…
Add to Cart
13
24457385

2003-2011
 Bushing - Rear Sway Bar (17mm)

· Diam 17 MM
Loading availability…
Loading…
Add to Cart
13
24457386

2003-2011
 Bushing - Rear Sway Bar (18mm)

· Diam 18 MM
Loading availability…
Loading…
Add to Cart
13
24457843

2003-2011
 Bushing - Rear Sway Bar (19mm)

· Diam 19 MM

· All convertibles

· Sport Chassis
Loading availability…
Loading…
Add to Cart
13
96651917

2003-2011
 Rear Sway Bar Bushings 17mm [POWERFLEX] Saab 24457385

· 17mm

· Powerflex PFR66-519-17
Loading availability…
Loading…
Add to Cart
13
96651918

2003-2011
 Rear Sway Bar Bushings 18mm [POWERFLEX] Saab 24457386

· 18mm

· Powerflex PFR66-519-18
Loading availability…
Loading…
Add to Cart
13
96651919

2003-2011
 Rear Sway Bar Bushings 19mm [POWERFLEX] Saab 24457843

· 19mm

· Powerflex PFR66-519-19
Loading availability…
Loading…
Add to Cart
14
24468096

2003-2011
 Cap - Rear Sway Bar Bushing (FWD)

· Need: 2
Loading availability…
Loading…
Add to Cart
15
13104120

2003-2012
 Link

· Need: 2
Loading availability…
Loading…
Add to Cart
16
11102491

2003-2011
 Hexagon Screw

· Need: 2
Superseded by
11588744
17
11102971

2003-2011
 Hexagon Screw

· Need: 2
Superseded by
11589351
20
24436245

2003-2011
 Longitudinal Link

· LH
Loading availability…
Loading…
Add to Cart
20
24436246

2003-2011
 Longitudinal Link

· RH
Loading availability…
Loading…
Add to Cart
20A
9801210

2003-2011
 Rear Trailing Arm Bushing - Front [POWERFLEX]

· Front

· Powerflex PFR80-1210
Loading availability…
Loading…
Add to Cart
20A
12756395

2003-2011
 Rear Trailing Arm Bushing FWD

· Need: 2
Loading availability…
Loading…
Add to Cart
21
13204451

2003-2011
 Bracket

· LH
Loading availability…
Loading…
Add to Cart

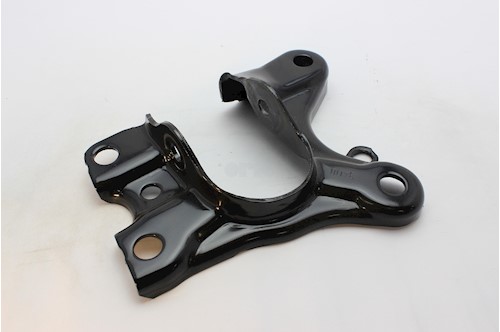

21
13204452

2003-2011
 Bracket

· RH
Loading availability…
Loading…
Add to Cart
22
11102401

2003-2011
 Hexagon Screw

· Need: 2
Loading availability…
Loading…
Add to Cart
23
11094488

2003-2011
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
24
13198720

2005-2005
 Flange Screw

· Need: 8
Loading availability…
Loading…
Add to Cart
24
11589278

2006-2012
 Hexagon Screw

· Need: 8
Loading availability…
Loading…
Add to Cart
25
11589351

2003-2011
 Bolt

· Need: 6
Loading availability…
Loading…
Add to Cart
26
11102411

2003-2011
 Hexagon Screw

· Need: 2
Loading availability…
Loading…
Add to Cart
27
11094488

2003-2011
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart

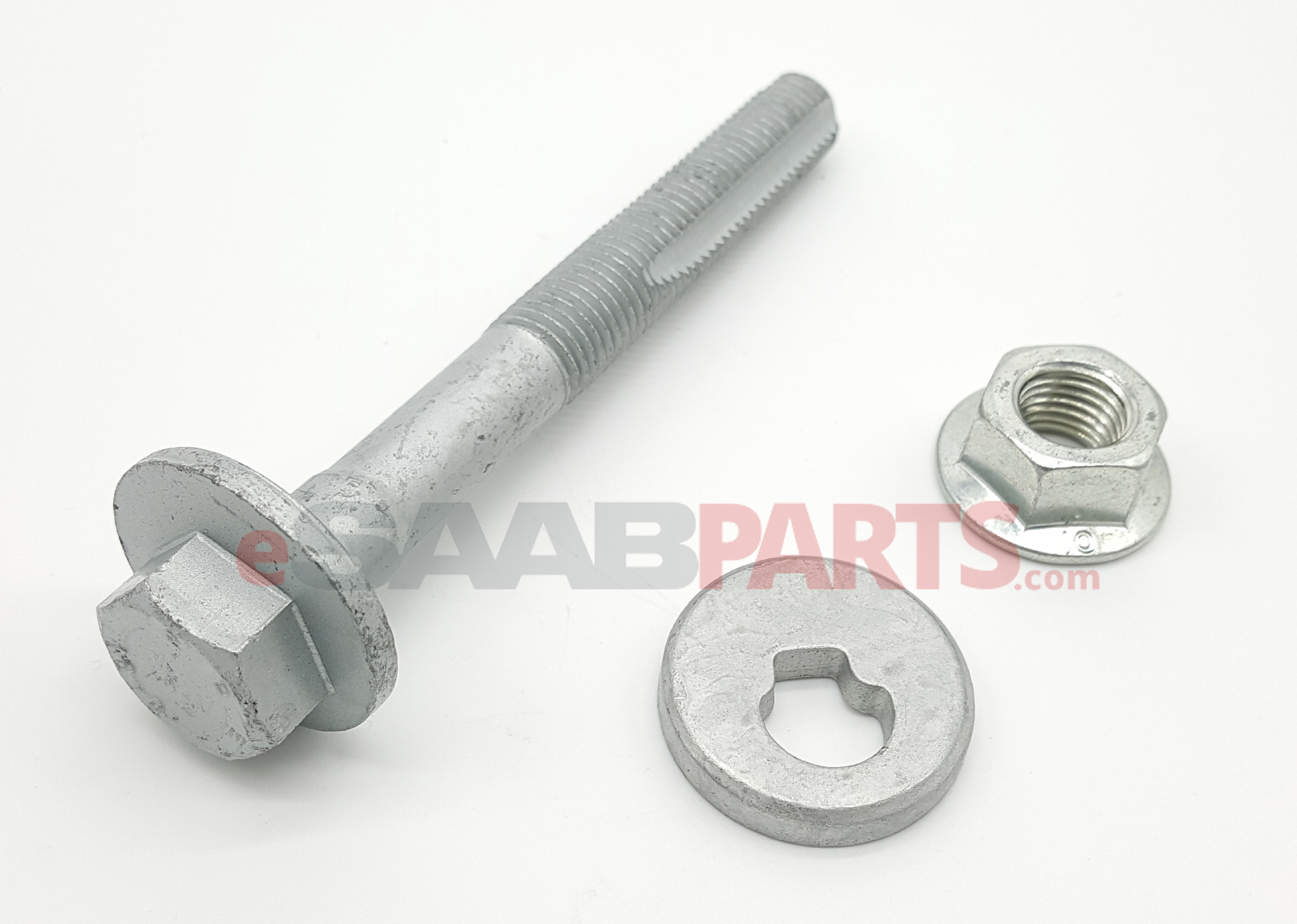

28,29,30
93422973

2003-2011
 Rear Camber Bolt Adjustment Kit (9-3 03-11)

· Includes new eccentric screw, washer, and nut.

· For adjusting rear camber.

· Need: 2
Loading availability…
Loading…
Add to Cart
28
24422973

2003-2011
 Hexagon Screw

· Need: 2
Loading availability…
Loading…
Add to Cart
29
32045061

2003-2011
 Cross Stay Washer

· Need: 2
Loading availability…
Loading…
Add to Cart
30
11094488

2003-2004
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
30
11094488

2005-2012
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
31
11102421

2003-2005
 Hexagon Screw

· Need: 2
Loading availability…
Loading…
Add to Cart
31
12767679

2006-2012
 Torx Screw

· Need: 2
Loading availability…
Loading…
Add to Cart
32
11094506

2003-2005
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
32
11900443

2006-2012
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
33
11102431

2003-2011
 Hexagon Screw

· Need: 2
Loading availability…
Loading…
Add to Cart
34
11094488

2003-2011
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
35,36,37
93422972

2003-2011
 Rear Toe-In Bolt Adjustment Kit (9-3 03-11)

· Includes new eccentric screw, washer, and nut.

· For adjusting rear toe-in.

· Need: 2
Loading availability…
Loading…
Add to Cart
35
24422972

2003-2011
 Hexagon Screw

· Need: 2
Loading availability…
Loading…
Add to Cart
36
32045061

2003-2011
 Cross Stay Washer

· Need: 2
Loading availability…
Loading…
Add to Cart
37
11094488

2003-2011
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
38
11094506

2003-2011
 Nut

· Need: 2
Loading availability…
Loading…
Add to Cart
40
12831584

2004-2012
 Brace

· CV

· Need: 2
Loading availability…
Loading…
Add to Cart
41
12831586

2004-2007
 Bracket

· CV

· LH
Superseded by
12781399
41
12781399

2007-2012
 Bracket

· CV

· LH
Loading availability…
Loading…
Add to Cart
41
12831587

2004-2007
 Bracket

· CV

· RH
Loading availability…
Loading…
Add to Cart
41
12781400

2007-2012
 Bracket

· CV

· RH
Loading availability…
Loading…
Add to Cart
42
12851160

2004-2012
 Sleeve

· CV

· Need: 2
Loading availability…
Loading…
Add to Cart
43
11900040

2004-2012
 Hexagon Screw

· CV

· Need: 2
Loading availability…
Loading…
Add to Cart
44
32022419

2004-2012
 Screw

· Need: 6
Loading availability…
Loading…
Add to Cart

Added to Cart

has been added to your cart.

Quantity:

View Cart
