Image | Position Brand |
Part Number Fitment Years |
Description | Inventory | Buy |
---|---|---|---|---|---|
104 |
2006-2009
|
Pin, Engine Front Cover Loc · T1, LL8 · Need: 2 · Dowel, 5.99x17.25, cham both ends, 10.9 |
Back Ordered |
$5.39
|
|
127 |
2006-2009
|
Sprocket, Crankshaft · T1, LL8 |
17 in |
$26.28 |
|
128 |
2006-2009
|
Balancer, Crankshaft · T1, LL8 · Incls 12578073 washer, incls 901, has A step on the hub for retainment of friction washer, requires seal kit 89017622 |
Back Ordered |
$155.12
|
|
129 |
2006-2009
|
Bolt, Cr/shf Balr · T1, LL8 · Hex head washer, m16x2 |
Back Ordered |
$15.16
|
|
226 |
2006-2007
|
Actuator, Cm/shf Posn · T1, LL8 |
Back Ordered |
$183.59
|
|
226 |
2008-2009
|
Actuator, Cm/shf Posn · T1, LL8 |
Back Ordered |
$204.54
|
|
227 |
2006-2009
|

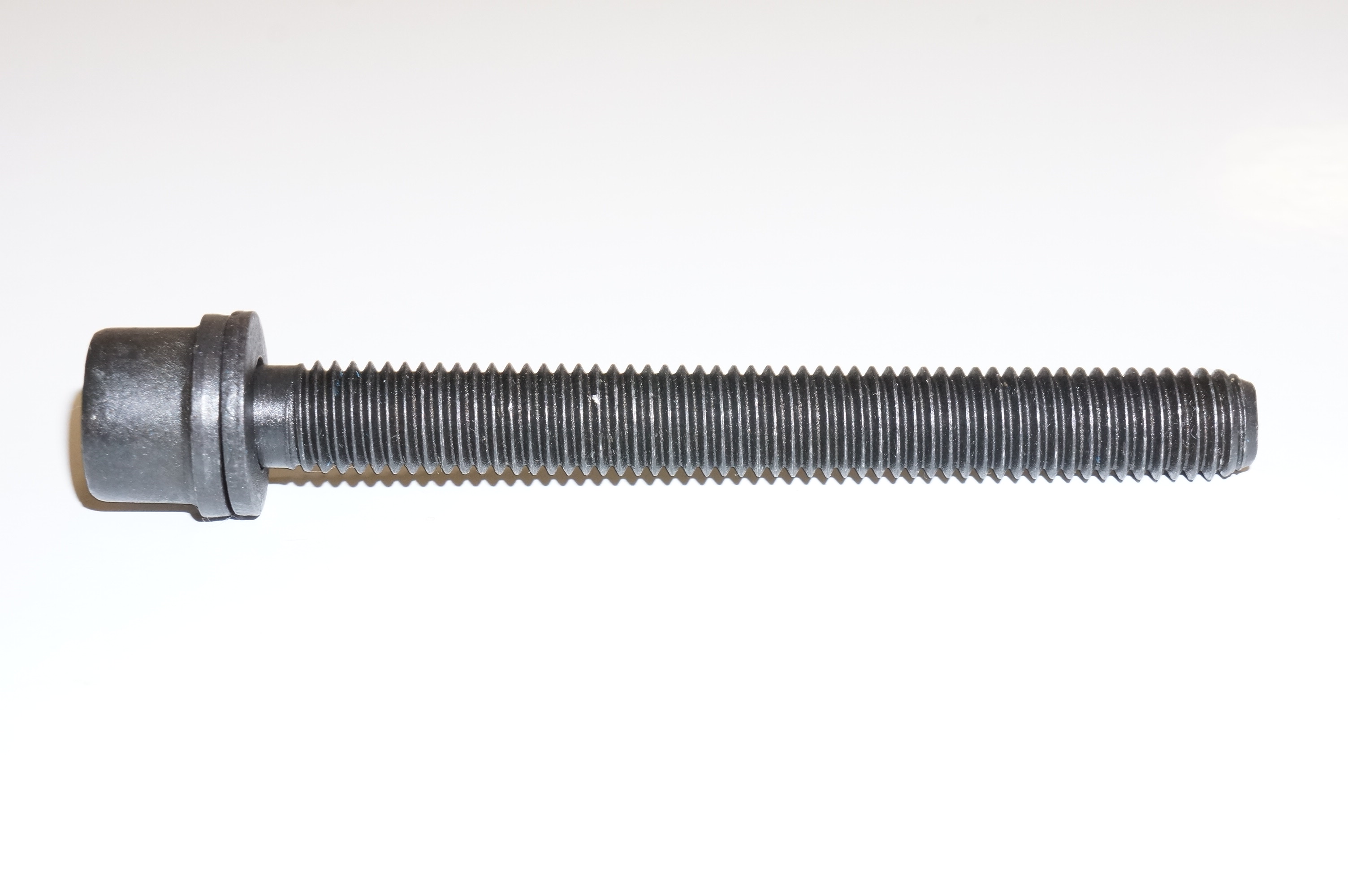

Bolt, Cm/shf Posn Actuator · T1, LL8 · 8.900, hx hd with fl wa, m10x1.5x88, 78 thd, 18 od, 10.9, gm4277m |
Back Ordered |
$32.30
|
|
228 |
2006-2009
|

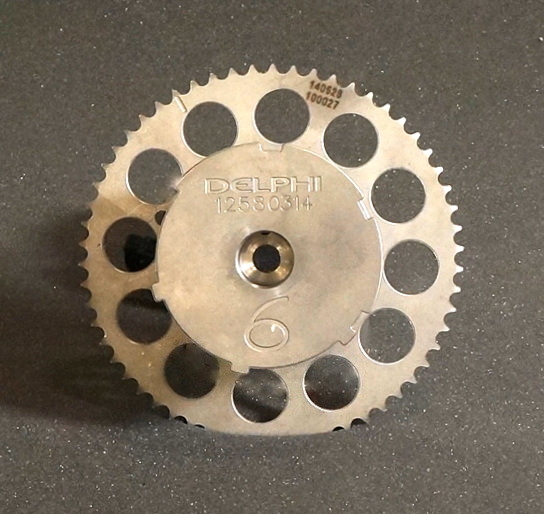

Sprocket, Cm/shf · T1, LL8 · Incl pin |
20+ in |
$23.91 |
|
229 |
2006-2009
|

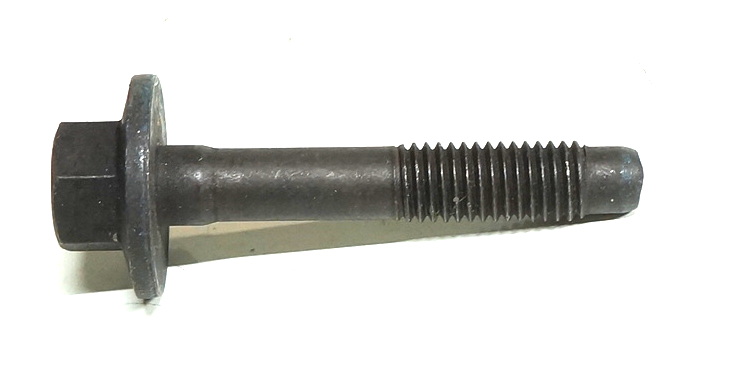

Bolt, Cm/shf Spkt · T1, LL8 · M10x1.5-6gx59mm material:medium carbon alloy stl |
10 in |
$6.80 |
|
230 |
2006-2009
|

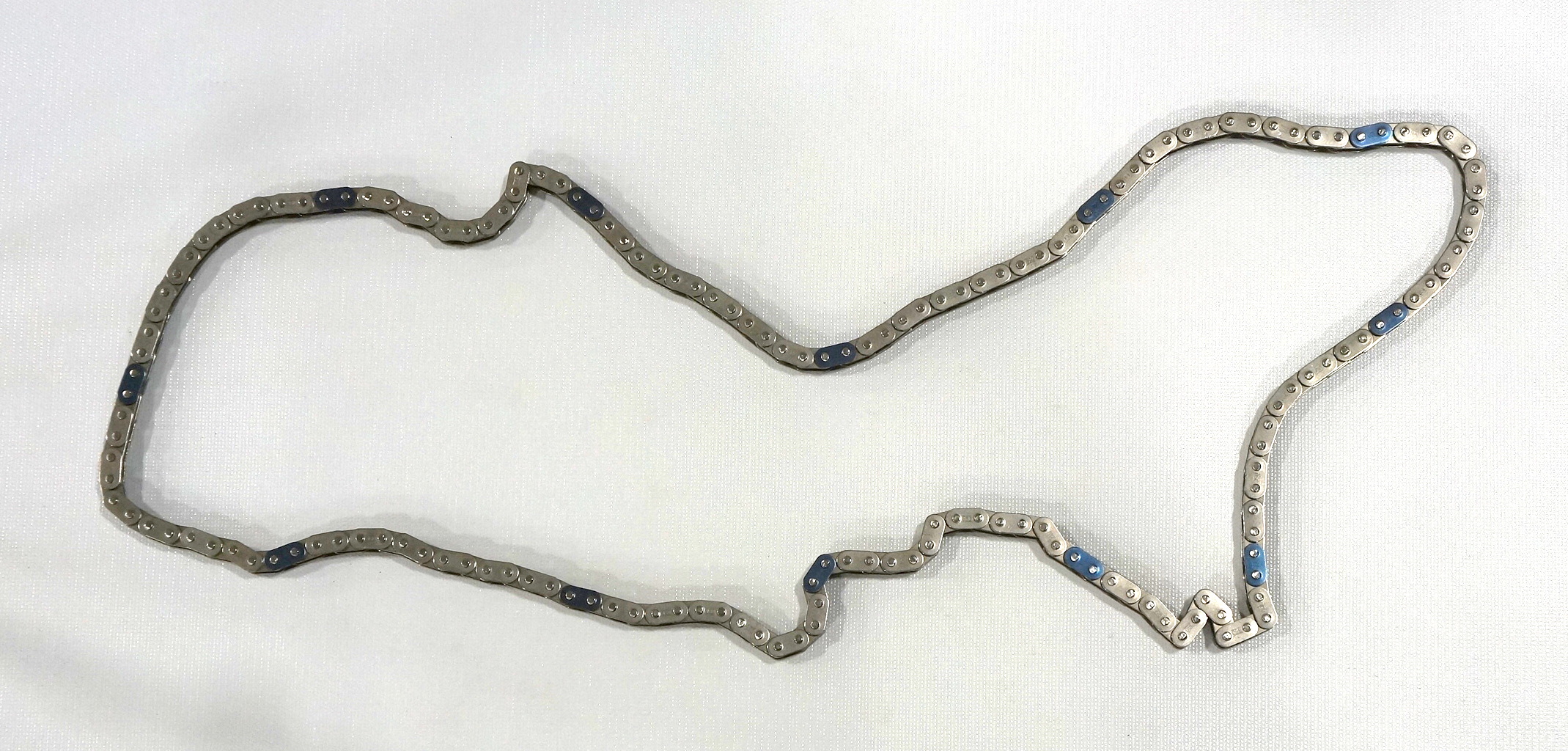

Chain, Cm/shf Tmg · T1, LL8 |
Back Ordered |
$121.04
|
|
231 |
2006-2009
|

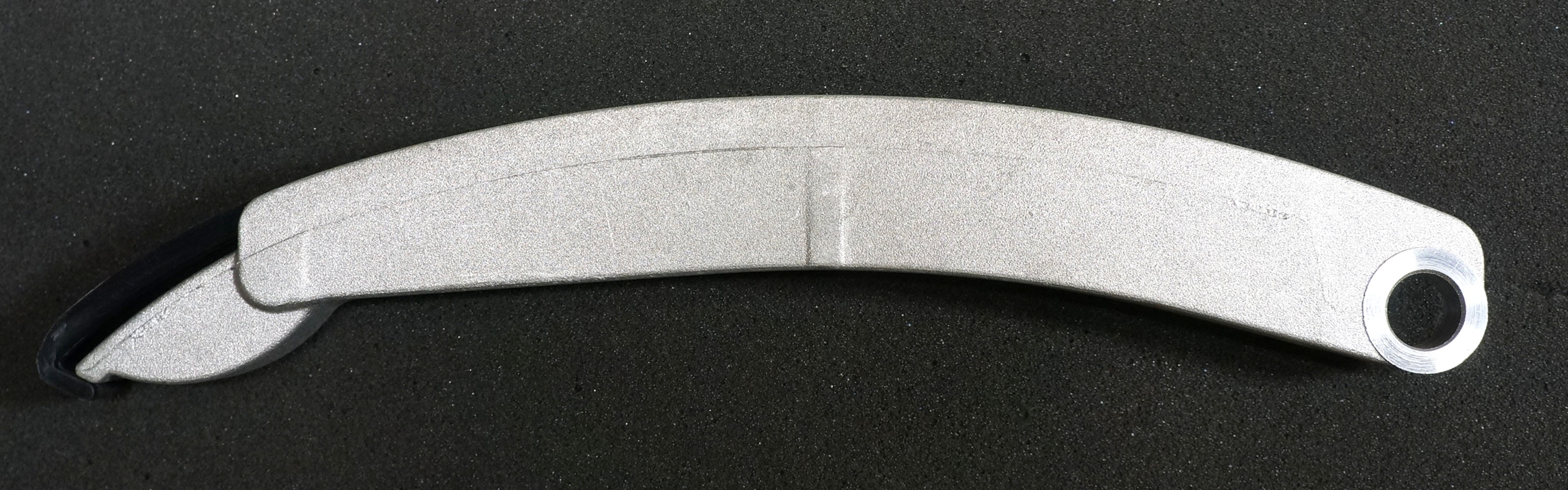

Shoe, Tmg Chain Tensr · T1, LL8 |
Back Ordered |
$1.98
|
|
232 |
2006-2009
|

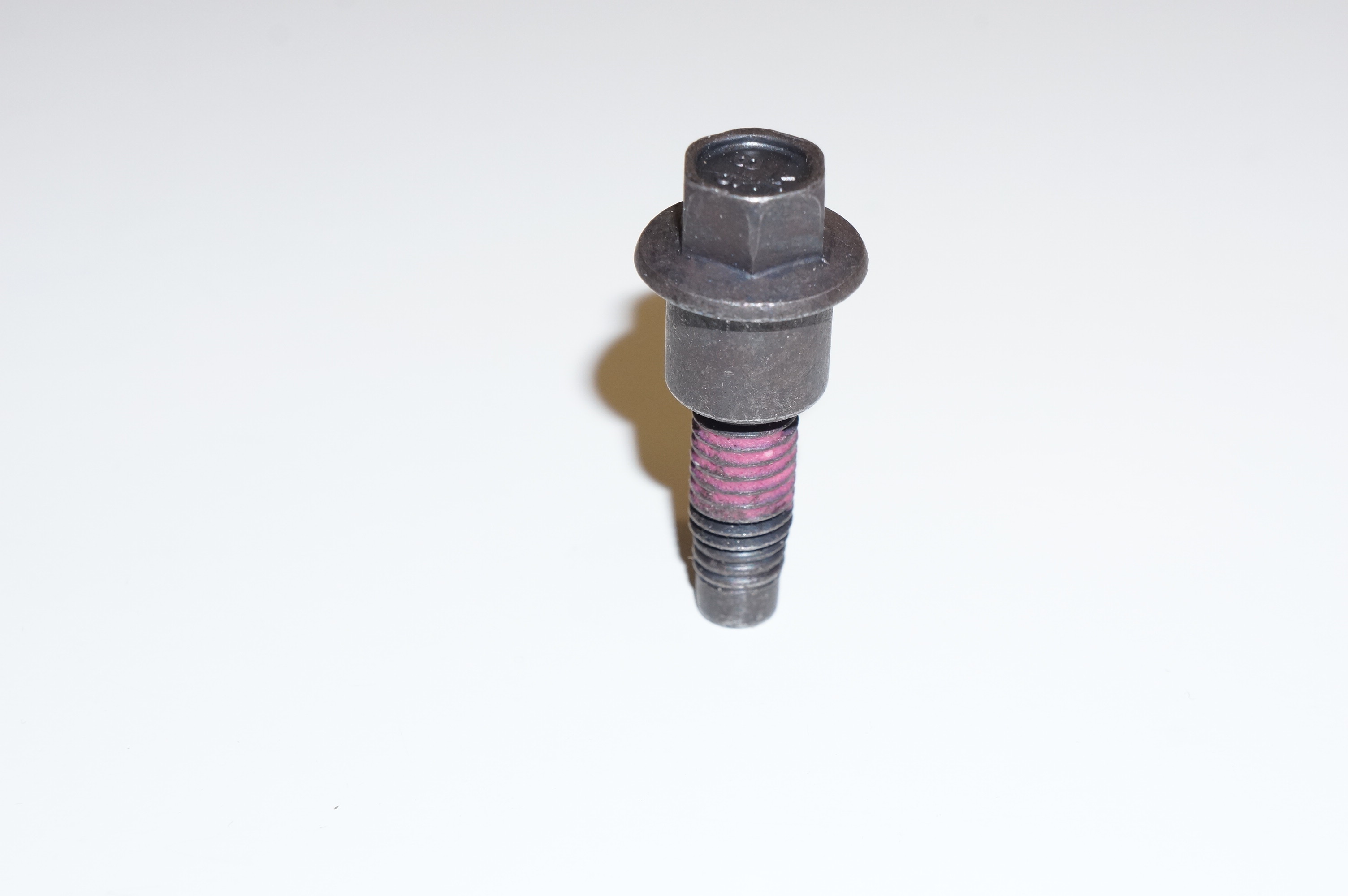

Bolt, Hfh With Shldr, M8X1.25X30.5, 11.45 Thd, 17Od, 9.8, Pl, Mach, 6194M, Mat-Pt · T · Tmg chain tensr shoe |
Back Ordered |
$11.40
|
|
233 |
2008-2009
|

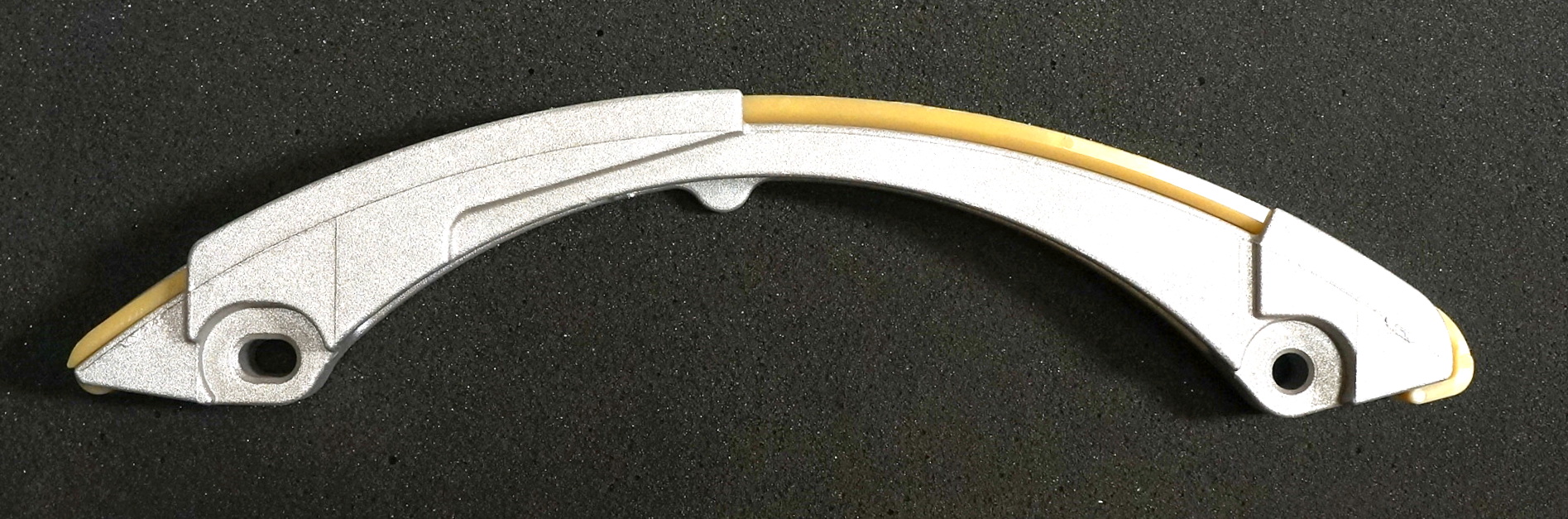

Guide, Tmg Chain · T1, LL8 |
Back Ordered |
$34.57
|
|
233 |
2006-2007
|
Guide, Tmg Chain · T1, LL8 · Fixed LH |
2 in |
$72.74 |
|
234 |
2006-2009
|

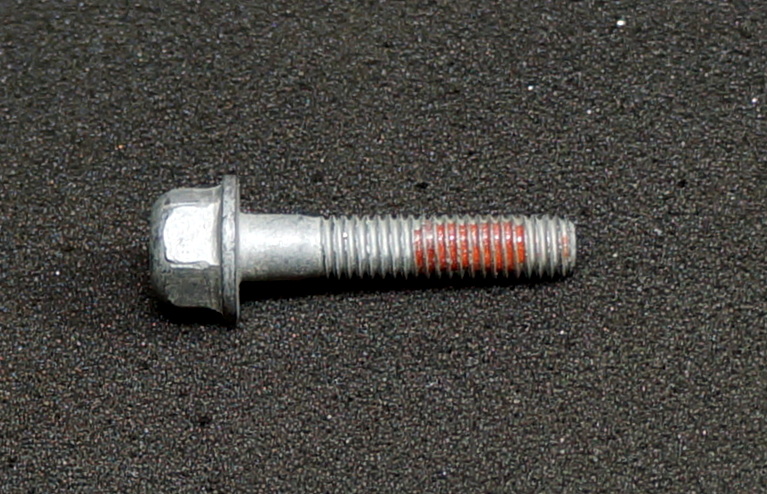

Bolt, Hfh, M6x1x30, 24 Thd, 13.2 Od, 10.9, Gmw3359, With Adhesive On Threads · T · Need: 2 · Tmg chain gde |
Back Ordered |
$5.92
|
|
235 |
2006-2009
|

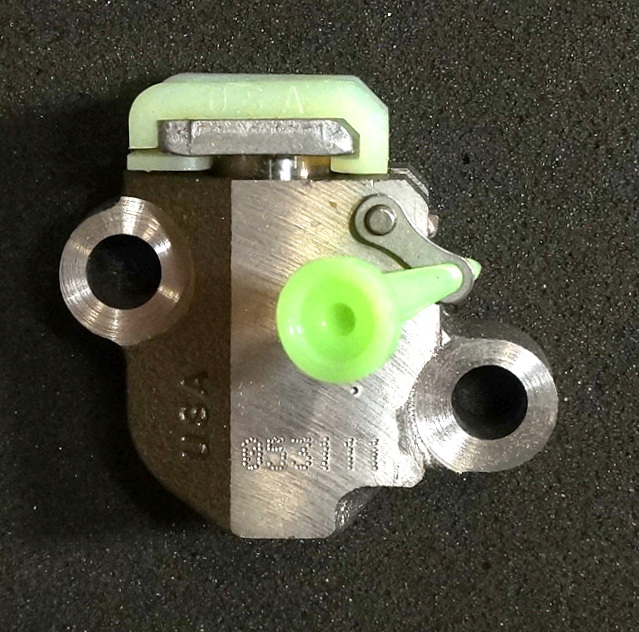

Tensioner, Timing Chain · T1, LL8 |
Back Ordered |
$80.20
|
|
236 |
2006-2009
|
Bolt, Hfh, M8X1.25X30, 25.65 Thd, 14 Od, 9.8, 4435M, Mach, Hdr-Pt · T · Need: 2 · Tmg chain tensr |
Back Ordered |
$6.44
|
|
300 |
2006-2009
|

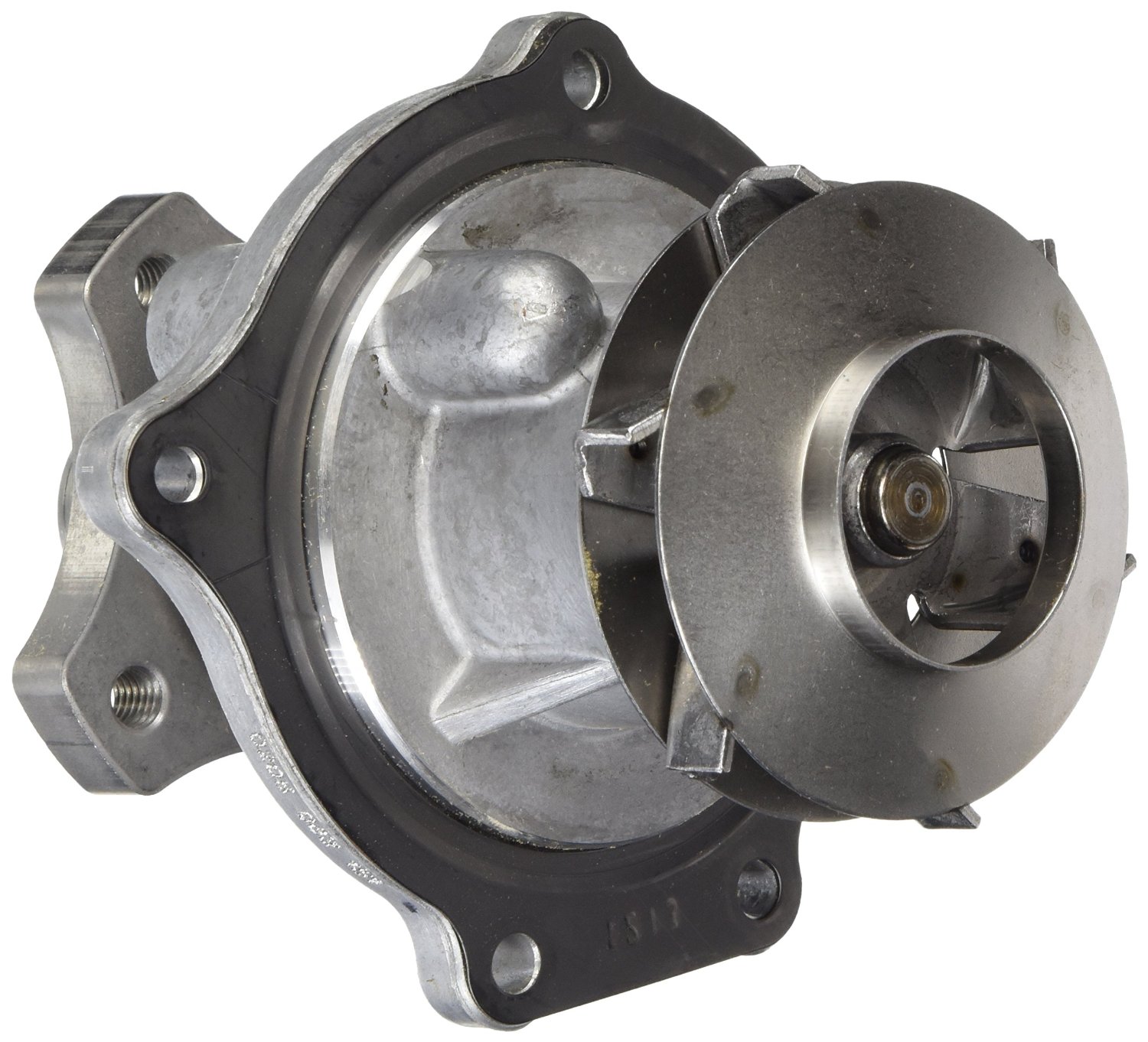

Pump, Wat · T1, LL8 · with gskt, incls 303 |
Back Ordered |
$185.50
|
|
301 |
2006-2009
|
Pulley, With Pmp · T1, LL8 |
Back Ordered |
$134.52
|
|
302 |
2006-2009
|
Bolt, With Pmp Pul · T1, LL8 · Need: 4 · M8x1.25x19, 10.9 |
Currently Unavailable |
$8.60 |
|
303 |
2006-2009
|

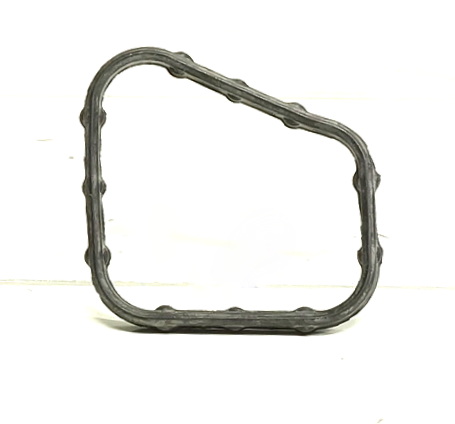

Gasket, With Pmp · T1, LL8 · Part of 300 |
1 in |
$8.58 |
|
304 |
2006-2009
|
Bolt, Hfh, M6x1x35, 17 Thd, 14.2 Od, 9.8, 6280m, Mach, Hdr-pt · T · Need: 5 · with pmp |
Back Ordered |
$3.74
|
|
305 |
2008-2009
|

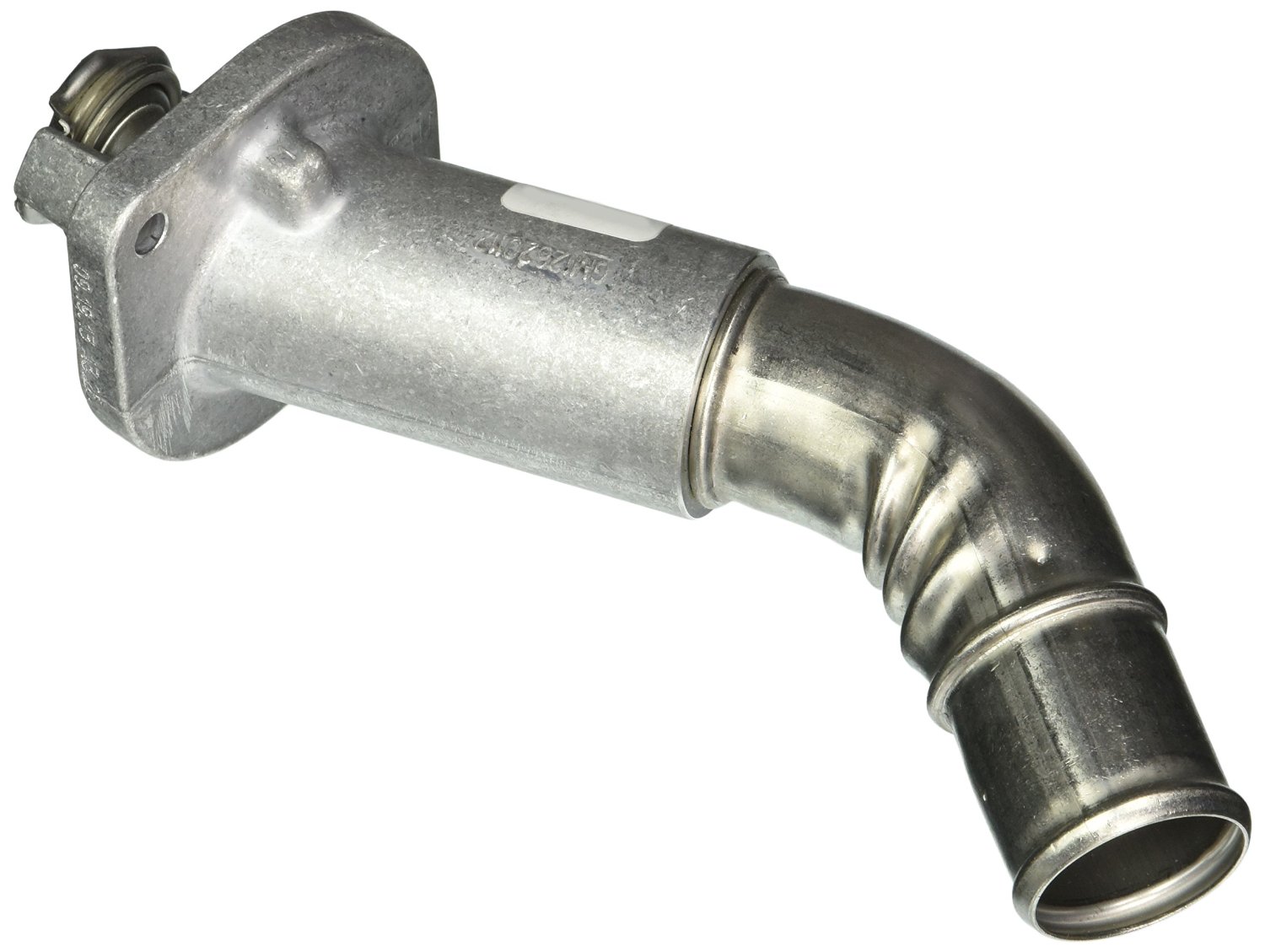

Housing, Engine Cool Therm · T1, LL8 · Incls thermostat, seal, valve, retainer, pipe, incls 306, 900 |
5 in |
$66.16 |
|
305 |
2006-2007
|
Housing, Engine Cool Therm · T1, LL8 · Thermostat, seal, to water pump, incls 306, 900 |
5 in |
$66.16 |
|
306 |
2006-2009
|

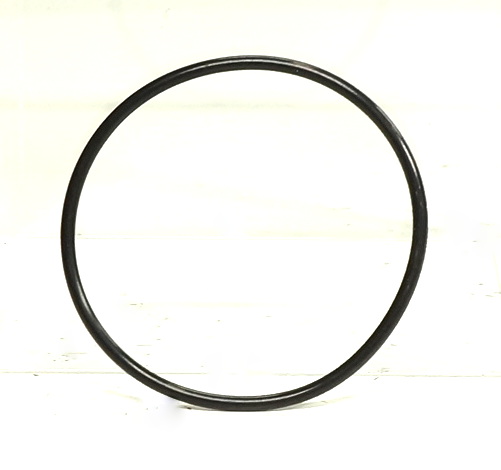

Seal, Engine Cool Therm Hsg · T1, LL8 · O ring, part of 305, 1.123 |
4 in |
$6.87 |
|
307 |
2006-2009
|
Bolt, Electronic Ignition Control Module Wiring Harness Clip · T · Need: 2 · Eng cool therm hsg |
Back Ordered |
$6.61
|
|
308 |
2006-2009
|

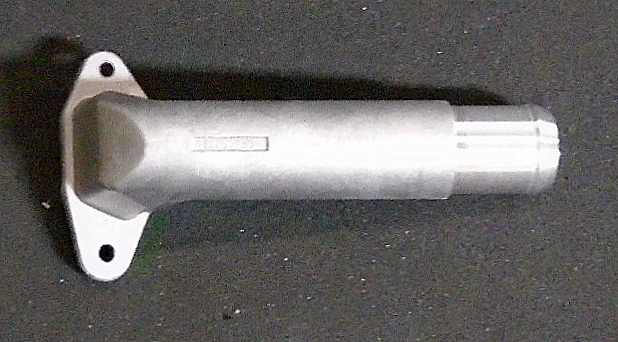

Outlet, Wat · T1, LL8 · Incls outlet, connector, seal, incls 310 |
Back Ordered |
$53.86
|
|
309 |
2006-2009
|
Bolt, Hfh, M6x1x30, 22.7 Thd, 14.2 Od, 8.8, Gmw3359, M-pt · T · Need: 2 · Wat otlt |
Currently Unavailable |
$8.68 |
|
310 |
2006-2009
|
Seal, Clnt Otlt · T1, LL8 · O ring, part of 308 |
Back Ordered |
$9.98
|
|
512 |
2006-2009
|
Cover, Engine Front · T1, LL8 · with oil pmp incls seal (frt cvr), gears, plug and relief valve, see group 00.000 "oil pump, pan and related parts" for detailed illustrated view, NO gasket used, use rtv 12378521 |
Back Ordered |
$151.96
|
|
515 |
2006-2009
|
Seal Kit, Cr/shf Front Oil · T1, LL8 · Balancers have A step on the hub for retainment of friction washer |
1 in |
$22.30 |
|
517 |
2006-2009
|
Spacer, Engine Front Cover Bolt · T1, LL8 |
Back Ordered |
$5.28
|
|
900 |
2006-2009
|
Thermostat, Engine Cool · T · Part of 305 |
Currently Unavailable |
||
901 |
2006-2009
|
Washer, Cr/shf Balr · T1, LL8 · Washer has lip & used on balancer with step, flat, 33 id, 45.5 od, 5 thk, part of 128 |
Back Ordered |
$9.53
|
