Image | Position Brand |
Part Number Fitment Years |
Description | Inventory | Buy |
---|---|---|---|---|---|
1 |
2005-2006
|
Brace, Bat Tray · T1 |
Currently Unavailable |
||
2 |
2005-2006
|
Bolt, Hex, M6x1x30, 19 Thd, 17 Od, 9.8, 6280m · T · Need: 2 · SN-ZN, mach, p-PT (bat tray br) |
No Longer Available |
||
3 |
2005-2006
|
Nut, Hfh, M6x1, 5.85thk, 14.2 O.d., 10, Zor · T · Min Order Qty: 10 · Bat tray br |
Back Ordered |
$5.84
|
|
4 |
2005-2006
|
Nut, Rivet, Hx Bodied, M6x1.0x19.35, Tz · T · Bat tray br |
Back Ordered |
$3.71
|
|
5 |
2005-2006
|
Duct, Bat Clg Air Inl · T1 |
Back Ordered |
$9.91
|
|
6 |
2005-2006
|
Stud, Bat Tray · T · Part of 8 |
Currently Unavailable |
||
7 |
2005-2006
|
Nut, Push On, M6, 2.25thk, 12.95 O.d., Stl, Por · T · Part of 8 |
Back Ordered |
$0.63
|
|
8 |
2005-2006
|
Tray, Bat · T1 · Incls 6, 7 |
No Longer Available |
||
9 |
2005-2006
|
Bolt, Bat Hold Down Retainer · T1 · M8x1.25x50, sq hd with ret |
Back Ordered |
$0.45
|
|
10 |
2005-2006
|
Bolt, Hex With Front Left Wa M8X1.25X26, 15 Thd, 21-Od, With Adh 6175, 9.8, Gm6280M · T · Need: 5 · ZN-C bat tray (2.383) |
Currently Unavailable |
||
11 |
2005-2006
|
Cable, Bat Pos · T1, LL8,M30 · Incls 21, 1040.0mm |
20+ in |
$173.10 |
|
12 |
2005-2006
|
Bolt, Hex With Front Left Wa, M6X1X20, 9 Thd, 17 Od, 6202M, Gmw3200, Tap, Dog Pt · T · Bat neg cbl |
Currently Unavailable |
||
13 |
2005-2006
|
Bolt, Hex With Front Left Wa, M10X1.5X30, 19 Thd, 20 Od, 8.8, Gmw3200, Mach, M-Pt · T · Bat neg cbl |
Currently Unavailable |
$5.19 |
|
14 |
2006-2006
|
Nut, Bat Pos Cbl · T1(06) · 8.917 |
Back Ordered |
$3.74
|
|
14 |
2005-2005
|
Nut, Bat Pos Cbl · T1 · To gen output term, 8.917 |
Back Ordered |
$3.74
|
|
15 |
2005-2006
|
Cover, Gen Wire Term · T1 · Black, terminal boot cover, 2.343 |
Back Ordered |
$4.79
|
|
16 |
2005-2006
|
Cable, Bat Neg · T1, LL8,M30 |
Currently Unavailable |
||
17 |
2005-2006
|
Bolt, Hex Hd, 3/8-16x13/32, 1/4 Thd, 1 5/32 Total Lg, 51/64 O.d., Stl, Zp · T · Need: 2 · Bat cbl term, 8.900 |
Back Ordered |
$2.71
|
|
18 |
2005-2006
|
Cover, Bat Neg Cbl Term · T1 · Black vinyl, surrounds cable end AT batt side term |
Back Ordered |
$6.44
|
|
19 |
2005-2006
|
Nut, Strtr Sol Cbl · T1 · M8x1.25x6, brass |
Back Ordered |
$1.06
|
|
20 |
2005-2006
|
Bolt, Hex With Front Left Wa, M6X1X20, 9 Thd, 17 Od, 6202M, Gmw3200, Tap, Dog Pt · T · Cb rdo wrg pos |
Currently Unavailable |
||
21 |
2005-2006
|
Bolt, Bat Pos Cbl J/blk · T · Part of 11 |
Currently Unavailable |
||
22 |
2005-2006
|
Battery, · T155(06), LL8 · Cca 800, side term, 260x174x183, US dealers contact acdelco wd for ordering & pricing info |
Currently Unavailable |
||
22 |
2005-2006
|
Battery, · T155(06), LL8 · Cca 700, side term, 260x174x183, US dealers contact acdelco wd for ordering & pricing info |
Currently Unavailable |
||
22 |
2005-2006
|
Battery, · T155(06), LH6,LL8 · Cca 670, side term, 260x179x181, US dealers contact acdelco wd for ordering & pricing info |
Back Ordered |
$85.41
|
|
23 |
2005-2006
|
Cover, Bat Pos Cbl Term · T1 · Red, surrounds cable end AT batt side term |
Back Ordered |
$4.52
|
|
24 |
2005-2006
|
Retainer, Bat Holdn · T1 · Plastic |
Back Ordered |
$6.26
|
|
25 |
2005-2006
|
Washer, Bat Hold Down Retainer · T1 · Min Order Qty: 10 |
Back Ordered |
$3.48
|
|
26 |
2005-2006
|
Nut, Bat Holdn Ret · T1 · Min Order Qty: 2 · 8 X 1.25, with lock washer, 8.016 |
Back Ordered |
$3.15
|
|
27 |
2005-2006
|
Cover, Bat · T1 · with o label |
Currently Unavailable |
||
28 |
2005-2006
|

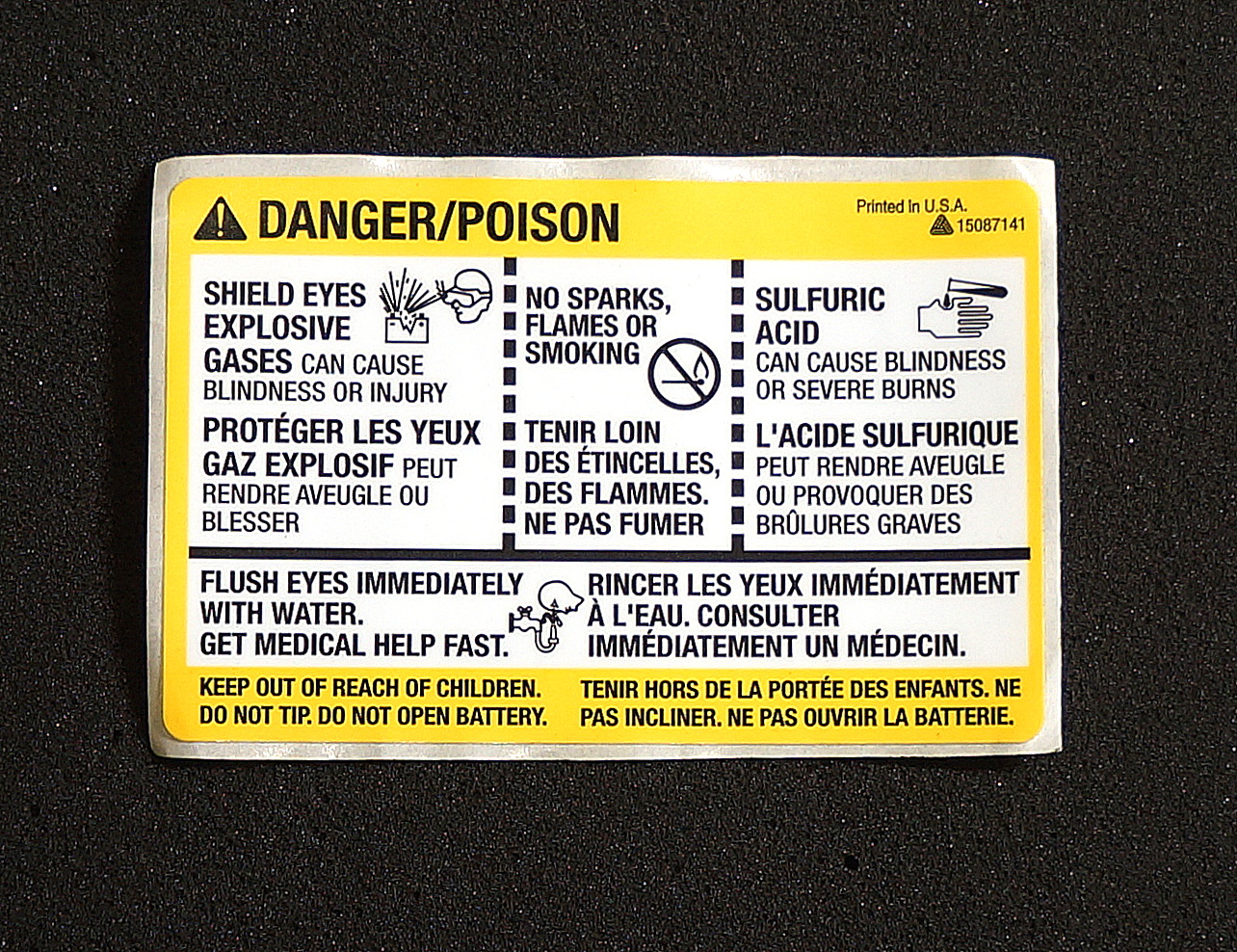

Label, Bat Wrng · T1, -VBW · with symbols and message |
Currently Unavailable |
