  1. Saab 9-7x Parts
  2. Transmission
  3. Transmission Automatic M70
  4. Automatic Transmission (M70) Part 2 (4L70-E) Case & Related Parts/Park Lock Linkage
Image Position
Brand
Part Number
Fitment Years
Description Inventory Buy
K01

24236378

2008-2009
Gasket Kit, A/Trns Service

· T1, M70

· Incls 2, 5, 6, 18, 19, 21, 26, 27, 30, 34, 39, 45, 47, 52, 55, 82, 89, fwd and overrun pistons, *1

Loading availability…
Loading…
Add to Cart
• 2

24233361

2008-2009
Bolt, A/trns Fluid Pump

· Included w/ #K01

· T1, M70

· Need: 7

· Incls 3, m8x1.25x60, incls seal, *kit1

Loading availability…
Loading…
Add to Cart
• 5

24226315

2008-2009
Seal, A/trns Fluid Pump

· Included w/ #K01

· T1, M70

· Wedge type seal asm, *kit1

Loading availability…
Loading…
Add to Cart
• 6

12337931

2008-2009
Gasket, A/trns Fluid Pump

· Included w/ #K01

· T1, M70

· *kit1

Loading availability…
Loading…
Add to Cart
• 18


2008-2009
Ring, Low & Rev Accumulator Pstn Inner Fluid Seal

· Included w/ #K01

· T

· Part of 17, *kit1, kit5, kit6

• 19


2008-2009
Ring, Low & Rev Accumulator Pstn Otr Fluid Seal

· Included w/ #K01

· T

· Part of 17, *kit1, kit5, kit6

• 21

08642112

2008-2009
Seal, 2-4 Band Servo 2nd Appl Pstn Hsg

· Included w/ #K01

· T1, M70

· O ring, *kit1

Loading availability…
Loading…
Add to Cart
• 26

08642480

2008-2009
Ring, 2-4 Band Servo Pstn Fluid Seal

· Included w/ #K01

· T1, M70

· Need: 3

· *kit1

Loading availability…
Loading…
Add to Cart
• 27

08647351

2008-2009
Seal, 2-4 Band Servo Cover

· Included w/ #K01

· T1, M70

· O ring, part of 28, *kit1

Loading availability…
Loading…
Add to Cart
• 30

24208660

2008-2009
Seal, A/trns Case Extn

· Included w/ #K01

· T1, M70

· *kit1

Loading availability…
Loading…
Add to Cart
• 34


2008-2009
Seal, Prop Shf Front Slip Yoke Oil

· Included w/ #K01

· T

· *kit1

• 39

00444613

2008-2009
Plug, Hex Hd, 1/8-27 Nptf, Stl

· Included w/ #K01

· T

· *kit1

Loading availability…
Loading…
Add to Cart
• 45

24206509

2008-2009
Ring, 3-4 Accumulator Pstn Fluid Seal

· Included w/ #K01

· T1, M70

· *kit1, kit6

Loading availability…
Loading…
Add to Cart
• 47


2008-2009
Gasket, C/vlv Body

· Included w/ #K01

· T

· *kit1, kit4

• 52


2008-2009
Gasket, C/vlv Body Spcr Plt

· Included w/ #K01

· T

· Plate to valve bdy, *kit1, kit4

• 55

24206509

2008-2009
Ring, 1-2 Accumulator Pstn Fluid Seal

· Included w/ #K01

· T1, M70

· *kit1, kit6, kit7

Loading availability…
Loading…
Add to Cart
• 82

08657163

2008-2009

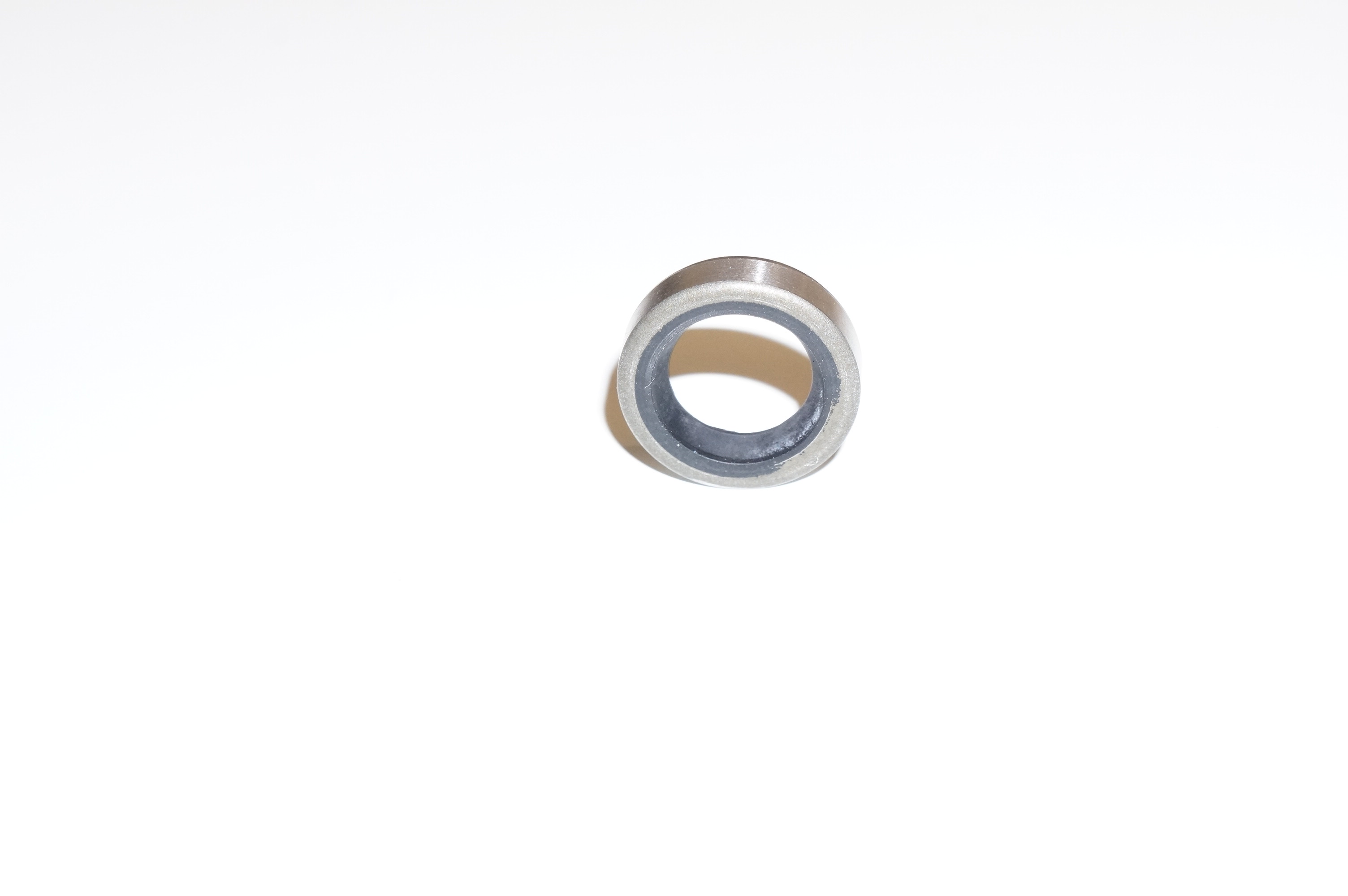

Seal, Man Shft Shf

· Included w/ #K01

· T1, M70

· Part of 84, *kit1, kit8

Loading availability…
Loading…
Add to Cart
• 89

08680731

2008-2009
Link, Man Vlv

· Included w/ #K01

· T1, M70

· *kit1

Loading availability…
Loading…
Add to Cart
K03

24208576

2008-2009

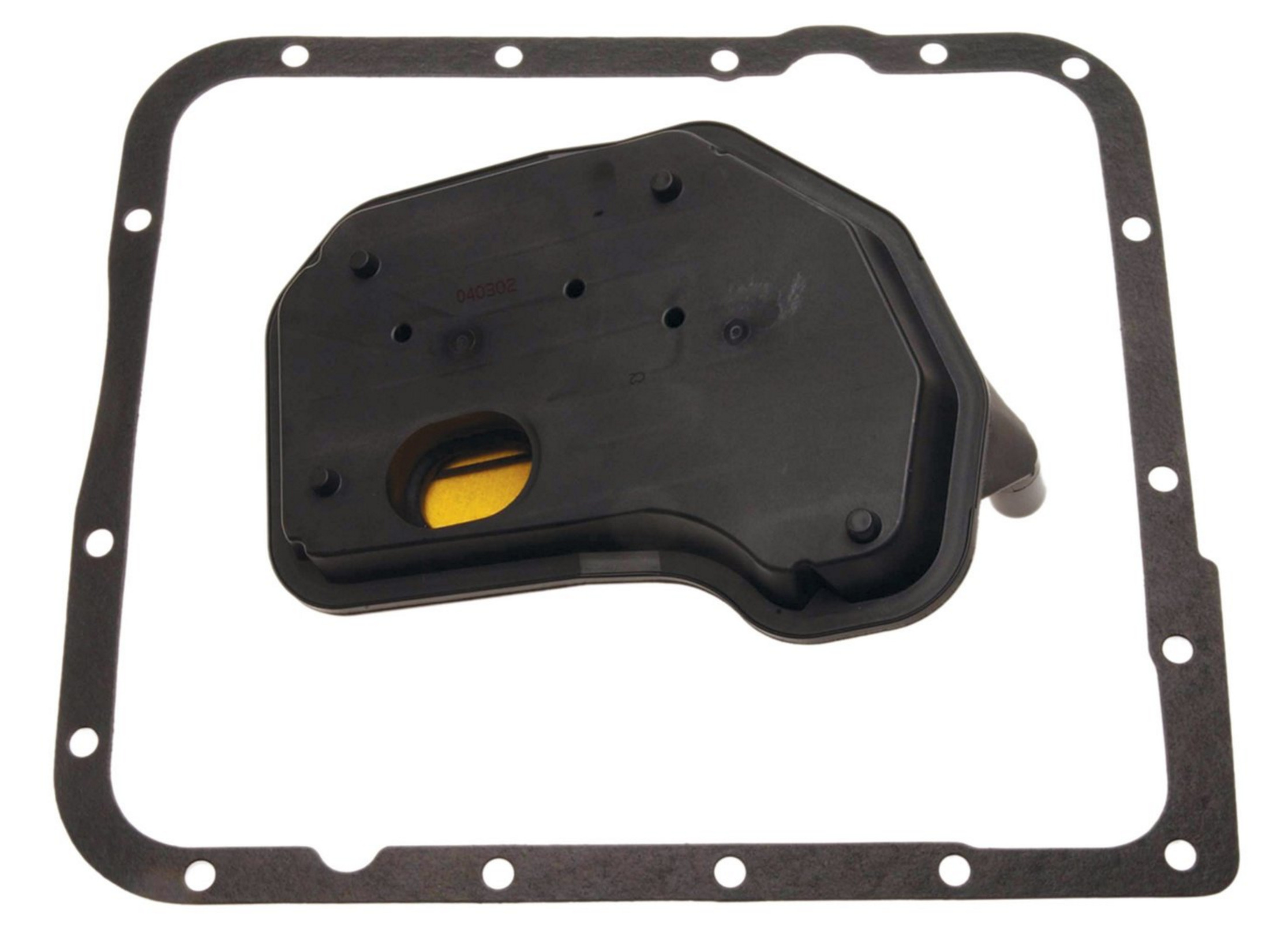

Automatic Transmission Fluid Filter Kit

· T1, M70

· Incls 71-73, used with deep pan 76.6mm

Loading availability…
Loading…
Add to Cart
• 71

08685775

2008-2008

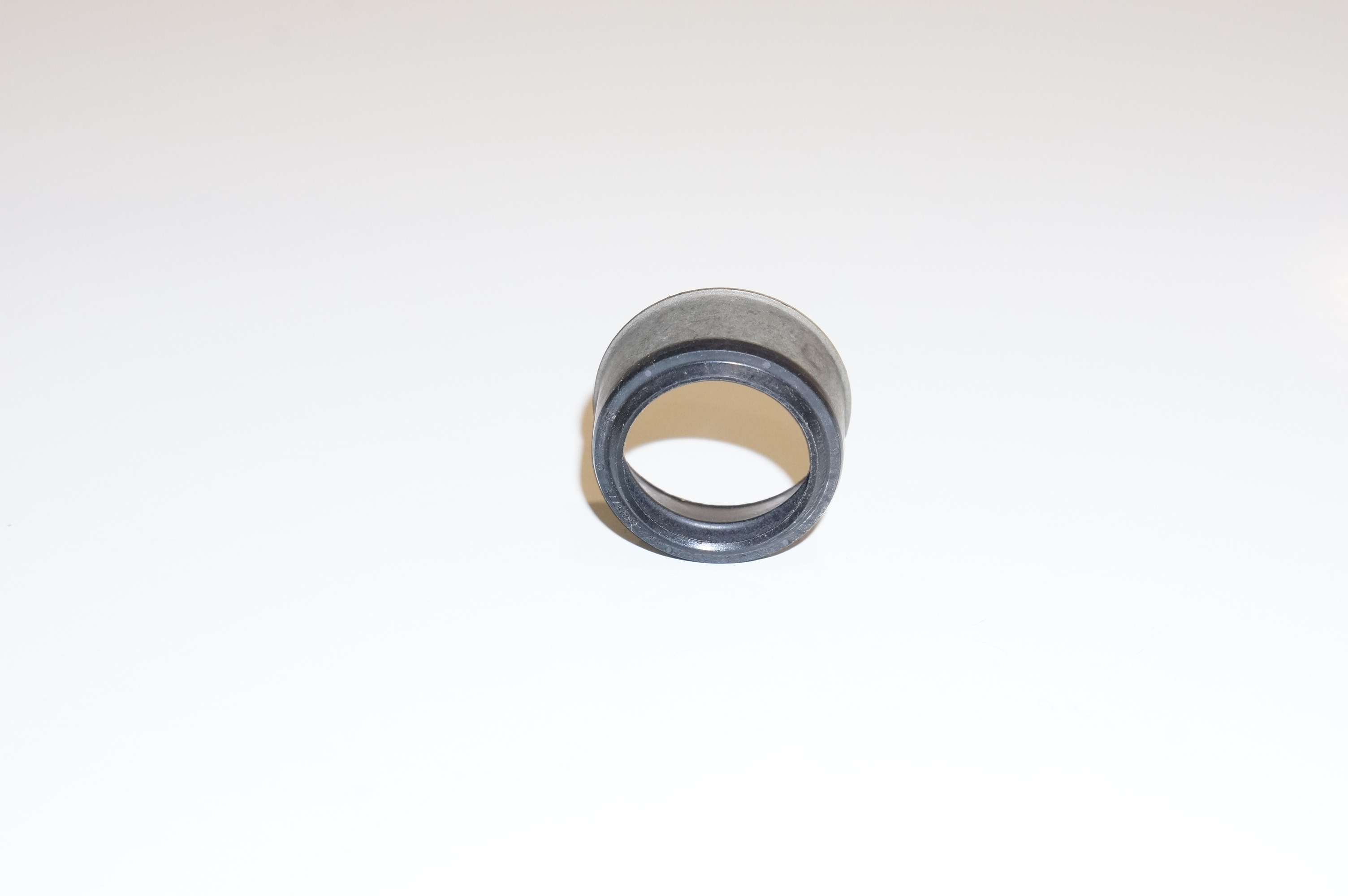

Seal, A/trns Fluid Fltr

· Included w/ #K03

· T1, M70

· *kit3

Loading availability…
Loading…
Add to Cart
• 72


2008-2009
Filter, A/trns Fluid

· Included w/ #K03

· T

· *kit3

• 73

08654799

2008-2009

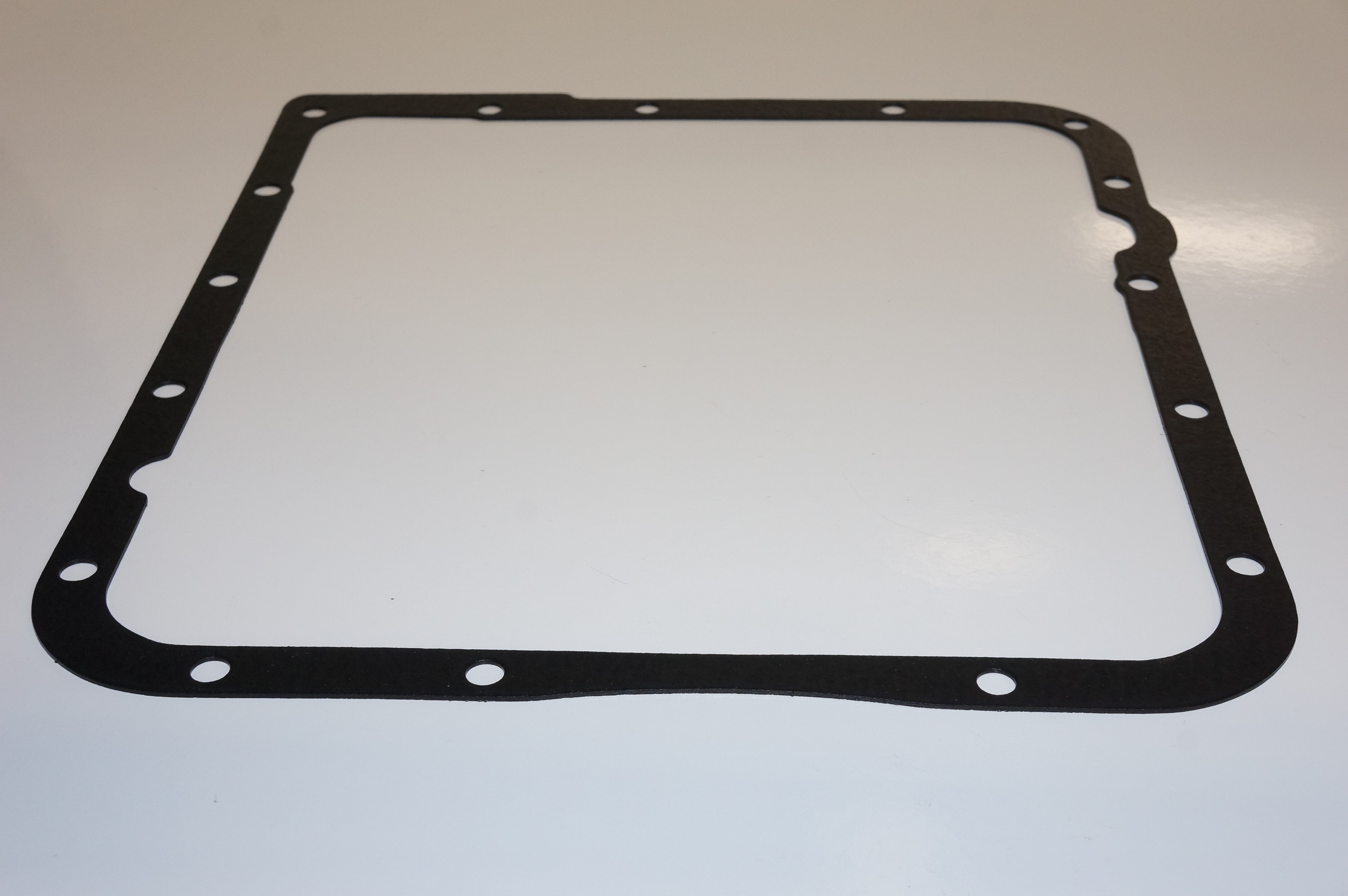

Gasket, A/trns Fluid Pan

· Included w/ #K03

· T1, M70

· *kit3

Loading availability…
Loading…
Add to Cart
K04

24221350

2008-2009
Gasket Kit, Control Valve Body Spacer Plate

· T1, M70

· Incls 47, 52

Loading availability…
Loading…
Add to Cart
• 47


2008-2009
Gasket, C/vlv Body

· Included w/ #K04

· T

· *kit1, kit4

• 52


2008-2009
Gasket, C/vlv Body Spcr Plt

· Included w/ #K04

· T

· Plate to valve bdy, *kit1, kit4

K05

24232073

2008-2009
Ring Kit, 2-4 Band Servo 2Nd Application Piston Fluid Seal

· T1, M70

· Incls 18, 19

Loading availability…
Loading…
Add to Cart
• 18


2008-2009
Ring, Low & Rev Accumulator Pstn Inner Fluid Seal

· Included w/ #K05

· T

· Part of 17, *kit1, kit5, kit6

• 19


2008-2009
Ring, Low & Rev Accumulator Pstn Otr Fluid Seal

· Included w/ #K05

· T

· Part of 17, *kit1, kit5, kit6

K06

24221919

2008-2009
Piston Kit, 1-2 & 3-4 Accumulator

· T1, M70

· Incls 18, 19, 44, 45, 55, 56, incls 1-2 & 3-4 accum pstn & seal asm

Loading availability…
Loading…
Add to Cart
• 18


2008-2009
Ring, Low & Rev Accumulator Pstn Inner Fluid Seal

· Included w/ #K06

· T

· Part of 17, *kit1, kit5, kit6

• 19


2008-2009
Ring, Low & Rev Accumulator Pstn Otr Fluid Seal

· Included w/ #K06

· T

· Part of 17, *kit1, kit5, kit6

• 44


2008-2009
Piston, 3-4 Accumulator

· Included w/ #K06

· T

· *kit6

• 45

24206509

2008-2009
Ring, 3-4 Accumulator Pstn Fluid Seal

· Included w/ #K06

· T1, M70

· *kit1, kit6

Loading availability…
Loading…
Add to Cart
• 55

24206509

2008-2009
Ring, 1-2 Accumulator Pstn Fluid Seal

· Included w/ #K06

· T1, M70

· *kit1, kit6, kit7

Loading availability…
Loading…
Add to Cart
• 56


2008-2009
Piston, 1-2 Accumulator

· Included w/ #K06

· T

· *kit6, kit7

K07

24227711

2008-2009
Accumulator, 1-2

· T1, LS2,M70

· Incls 54-57, 104

Loading availability…
Loading…
Add to Cart
• 54

24220146

2008-2009
Spring, 1-2 Accumulator Piston

· Included w/ #K07

· T1, M70

· Yellow, *kit7

Loading availability…
Loading…
Add to Cart
• 55

24206509

2008-2009
Ring, 1-2 Accumulator Pstn Fluid Seal

· Included w/ #K07

· T1, M70

· *kit1, kit6, kit7

Loading availability…
Loading…
Add to Cart
• 56


2008-2009
Piston, 1-2 Accumulator

· Included w/ #K07

· T

· *kit6, kit7

• 57

24219935

2008-2009
Cover, 1-2 Accumulator

· Included w/ #K07

· T1, M70

· Incls pin, *kit7

Loading availability…
Loading…
Add to Cart
• 104

24220146

2008-2008
Spring, 1-2 Accumulator Piston

· Included w/ #K07

· T1, M70

· Yellow, *kit7

Loading availability…
Loading…
Add to Cart
• 9

24202440

2008-2009
Pipe, A/trns Vent

· Included w/ #K07

· T1, M70

· *kit8

Loading availability…
Loading…
Add to Cart
• 11

08628864

2008-2009
Orifice, FWD Clu Feed

· Included w/ #K07

· T1, M70

· 6.4mm dia, NO dimple, *kit8, 4.104

Loading availability…
Loading…
Add to Cart
• 38

08628864

2008-2009
Orifice, 3rd Accumulator Bl

· Included w/ #K07

· T1, M70

· 6.4mm dia, NO dimple, *kit8, 4.104

Loading availability…
Loading…
Add to Cart
• 40

08634400

2008-2009
Valve, 3rd Accumulator Ball Chk

· Included w/ #K07

· T1, M70

· *kit8

Loading availability…
Loading…
Add to Cart
• 82

08657163

2008-2009
Seal, Man Shft Shf

· Included w/ #K07

· T1, M70

· Part of 84, *kit1, kit8

Loading availability…
Loading…
Add to Cart
• 95

24236579

2008-2009
Fitting, Trans Fluid Clr Pipe

· Included w/ #K07

· T1

· Need: 2

· Incls 96, 9/16-18 unf-2a, quick connect, alum body, *kit8

Superseded by
24233366
• 96

24205103

2008-2009
Clip

· Included w/ #K07

· T1

· Need: 4

· Part of 95, expanding spring wire, *kit8

Loading availability…
Loading…
Add to Cart
• 99

08663707

2008-2009
Orifice, Lub Fluid

· Included w/ #K07

· T1, M70

· 4.3mm dia, *kit8

Loading availability…
Loading…
Add to Cart
• 103


2008-2009
Case, A/trns

· Included w/ #K07

· T

· *kit8

K08

24247300

2008-2008
Case Kit, A/trns

· T1, M70

· 2nd des, incls 9, 11, 38, 40, 82, 95, 96, 99, 103, units built 12-29-07 & after, for 1st des see 24231452

Loading availability…
Loading…
Add to Cart
• 9

24202440

2008-2009
Pipe, A/trns Vent

· Included w/ #K08

· T1, M70

· *kit8

Loading availability…
Loading…
Add to Cart
• 11

08628864

2008-2009
Orifice, FWD Clu Feed

· Included w/ #K08

· T1, M70

· 6.4mm dia, NO dimple, *kit8, 4.104

Loading availability…
Loading…
Add to Cart
• 38

08628864

2008-2009
Orifice, 3rd Accumulator Bl

· Included w/ #K08

· T1, M70

· 6.4mm dia, NO dimple, *kit8, 4.104

Loading availability…
Loading…
Add to Cart
• 40

08634400

2008-2009
Valve, 3rd Accumulator Ball Chk

· Included w/ #K08

· T1, M70

· *kit8

Loading availability…
Loading…
Add to Cart
• 82

08657163

2008-2009
Seal, Man Shft Shf

· Included w/ #K08

· T1, M70

· Part of 84, *kit1, kit8

Loading availability…
Loading…
Add to Cart
• 95

24236579

2008-2009
Fitting, Trans Fluid Clr Pipe

· Included w/ #K08

· T1

· Need: 2

· Incls 96, 9/16-18 unf-2a, quick connect, alum body, *kit8

Superseded by
24233366
• 96

24205103

2008-2009
Clip

· Included w/ #K08

· T1

· Need: 4

· Part of 95, expanding spring wire, *kit8

Loading availability…
Loading…
Add to Cart
• 99

08663707

2008-2009
Orifice, Lub Fluid

· Included w/ #K08

· T1, M70

· 4.3mm dia, *kit8

Loading availability…
Loading…
Add to Cart
• 103


2008-2009
Case, A/trns

· Included w/ #K08

· T

· *kit8

1

17803854

2008-2008
Converter, Torq

· T1, M70 + $100.00 Core

· Reman

Loading availability…
Loading…
Add to Cart
3

24208664

2008-2009
Seal, A/Trns Fluid Pump Bolt

· T1, M70

· Part of 2, contains 10 seals

Loading availability…
Loading…
Add to Cart
4


2008-2009
Pump, A/trns Fluid

· T

· See group 04.000 "oil pump" for detailed illustrated view

7

24241470

2008-2009
Bushing, T/cv

· T1, M70

Loading availability…
Loading…
Add to Cart
12

08642273

2008-2009
Spring, 2-4 Band Servo Rtn

· T1, M70

· Orange

Loading availability…
Loading…
Add to Cart
13

08680499

2008-2009
Pin, 2-4 Band Servo Pstn

· T1, M70

· Identify by 1 groove in tapered point, 4.228

Loading availability…
Loading…
Add to Cart
13

08680500

2008-2009
Pin, 2-4 Band Servo Pstn

· T1, M70

· Identify by 2 grooves in tapered point, 4.228

Loading availability…
Loading…
Add to Cart
13

08680501

2008-2009
Pin, 2-4 Band Servo Pstn

· T1, M70

· Identify by NO grooves in tapered point, 4.228

Loading availability…
Loading…
Add to Cart
14

08642105

2008-2009
Ring, 2-4 Band Servo 2nd Appl Pstn Ret

· T1, M70

· Need: 3

Loading availability…
Loading…
Add to Cart
15

08642416

2008-2009
Retainer, 2-4 Band Servo Cush Spr

· T1, M70

Loading availability…
Loading…
Add to Cart
16

08642539

2008-2009
Spring, 2-4 Band Servo Pstn Cush

· T1, M70

· Pink

Loading availability…
Loading…
Add to Cart
17

24230441

2008-2009
Piston Kit, 2-4 Band Servo 2nd Apply

· T1, M70

· Incls 18, 19, NO color, .64, 4.164

Loading availability…
Loading…
Add to Cart
20

24229157

2008-2009
Housing, 2-4 Band Servo 2nd Appl

· T1, M70

Loading availability…
Loading…
Add to Cart
22

24207758

2008-2009
Spring, 2-4 Band Servo Pstn

· T1, M70

Loading availability…
Loading…
Add to Cart
23

08642107

2008-2009
Washer, 2-4 Band Servo Pin

· T1, M70

· 11.17 id X 22.0 od X 2.30 thk

Loading availability…
Loading…
Add to Cart
24

09415640

2008-2009
Retainer, Snap Ring Bowed Ext.fits Shft 7/16 Pl

· T

· Output shf

Loading availability…
Loading…
Add to Cart
25

08642478

2008-2009
Piston, 2-4 Band Servo 4th Apply

· T1, M70

· with ring

Loading availability…
Loading…
Add to Cart
28

08642979

2008-2009
Cover, 2-4 Servo

· T1, M70

· with seal, incls 27, incls ring, 4.241

Loading availability…
Loading…
Add to Cart
29

24232065

2008-2009
Ring, 2-4 Band Servo Cover Retainer

· T1, M70

Loading availability…
Loading…
Add to Cart
31


2008-2009
Extension, A/trns Case

· T

· See group 04.000 "transfer case adapter" for detailed illustrated view

32

08680874

2008-2009
Bolt, A/trns Case Extn

· T1

· Need: 6

· M10x1.5x33.4, 4.265

Loading availability…
Loading…
Add to Cart
33

08680027

2008-2009
Bushing, Prop Shf Front Slip Yoke

· T1

· Inside dia 42.266 +-.038mm aprox 1.66", part of trans case, 4.104

Loading availability…
Loading…
Add to Cart
35

08680764

2008-2009
Bolt, Veh Spd Sen

· T1, LS2,M70

· M6x1x17.7, 4.265

Loading availability…
Loading…
Add to Cart
36

12376520

2008-2009

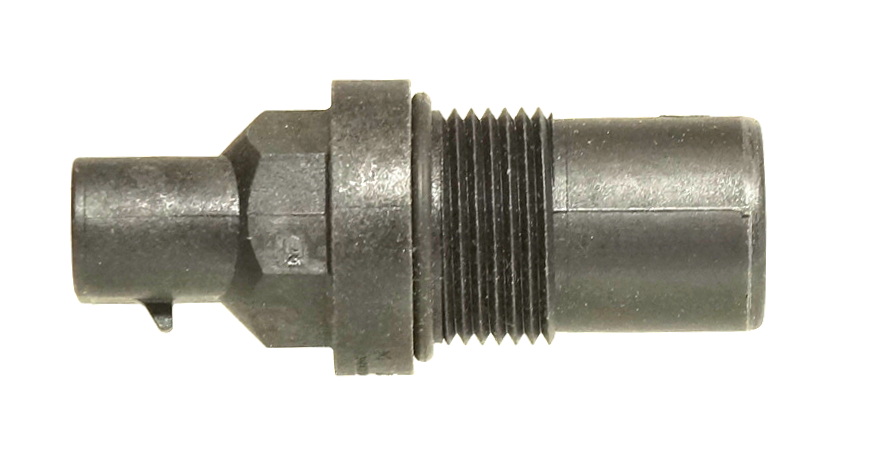

Sensor, Veh Spd

· T1

· Screw in with o-ring, 2-way male, 3.682

Loading availability…
Loading…
Add to Cart
36

12376520

2008-2009
Sensor, Veh Spd

· T1

· Screw in with o-ring, 2-way male

Loading availability…
Loading…
Add to Cart
37

19133158

2008-2009
Seal, Veh Spd Sen

· T155, NP4

· O ring, I.D. 20mm

Loading availability…
Loading…
Add to Cart
41

08654581

2008-2009
Pin, 2-4 Band Anc

· T1, M70

Loading availability…
Loading…
Add to Cart
42

08663890

2008-2008
Valve, A/trns Fluid/pump Cover Ball Chk

· T1, M70

· Double orifice, with ball

Loading availability…
Loading…
Add to Cart
43

08628273

2008-2009
Pin, 3-4 Accumulator Pstn

· T1, M70

· 4.226

Loading availability…
Loading…
Add to Cart
46


2008-2009
Spring, 3-4 Accumulator Pstn

· T

48

24241778

2008-2008
Plate, C/vlv Body Spcr

· T1, M70

· with gskt, incls 49, 50

Loading availability…
Loading…
Add to Cart
49


2008-2009
Filter, Shft Sol Vlv Fluid

· T

· Part of 48

50


2008-2009
Filter, Press Cont Sol Vlv Fluid

· T

· Part of 48

53

08682792

2008-2009
Cover, A/trns Case Fluid Pasg

· T1, M70

· 4.265

Loading availability…
Loading…
Add to Cart
58

11506078

2008-2009
Bolt, Hfh M6X1X65 9.8 Pl

· T

· Vlv body cover

Loading availability…
Loading…
Add to Cart
59

11503870

2008-2009
Bolt, Hex M6X1X35 10.9 Pressure Control

· T

· Acuum cvr to case

Loading availability…
Loading…
Add to Cart
60

19209026

2008-2008
Valve, Cont

· T1, M70

· with body & vlv, reman

Loading availability…
Loading…
Add to Cart
61

00104918

2008-2009
Ball, 1/4" Dia, Chrome Stl

· T

Loading availability…
Loading…
Add to Cart
62

08680741

2008-2008
Bolt, Vlv Body

· T1, M70

· Need: 3

· M6x1x54.4

Loading availability…
Loading…
Add to Cart
63

08642247

2008-2008
Detent, Man Shft

· T1, M70

· Incls 901, 902, incls pin

Loading availability…
Loading…
Add to Cart
63

24235788

2009-2009
Detent, Man Shft

· T1, M70

· Incls 901, 902

Loading availability…
Loading…
Add to Cart
64

11508687

2008-2009

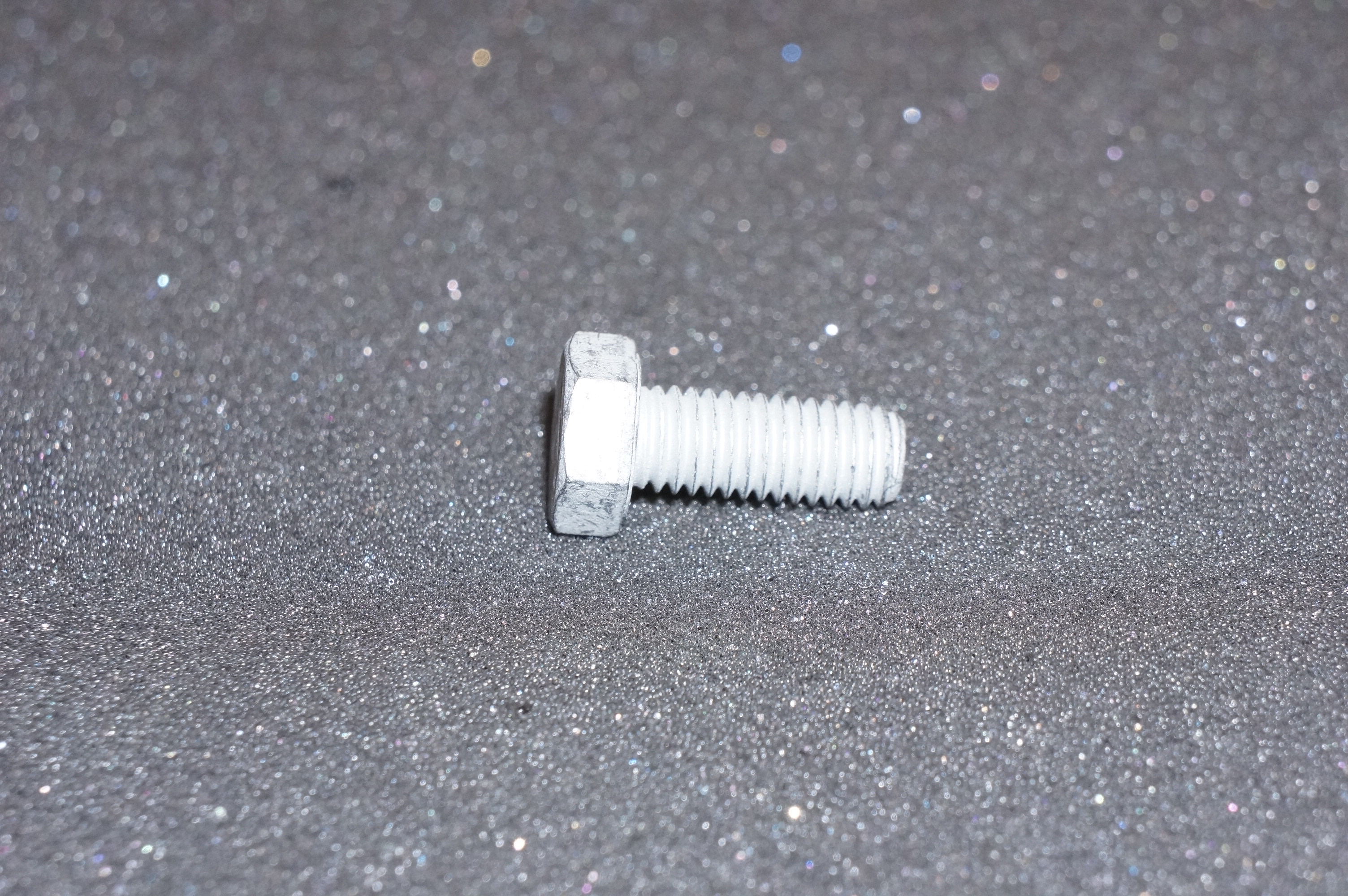

Bolt, Hex, M8X1.25X20, 16.88Thd, 10.9, Pzor

· T

· Dtnt spr to vb

Loading availability…
Loading…
Add to Cart
65


2008-2009
Seal, A/trns Wrg Conn

· T

· O ring, part of 66

66

24237980

2009-2009
Harness, A/Trns Wrg

· T1, LS2,M70

· Incls 65, 67, with tcc sol valve

Loading availability…
Loading…
Add to Cart
66

24237980

2009-2009
Harness, A/Trns Wrg

· T1, LS2,M70

· Incls 65, 67, with tcc sol valve, 2.480

Loading availability…
Loading…
Add to Cart
66

24234121

2008-2008
Harness, A/trns Wrg

· T1, LS2,M70,B4U

· Incls 65, 67, used with input speed sensor applications, tcc vlv sol incl, 2.480

Loading availability…
Loading…
Add to Cart
67

10471813

2008-2009

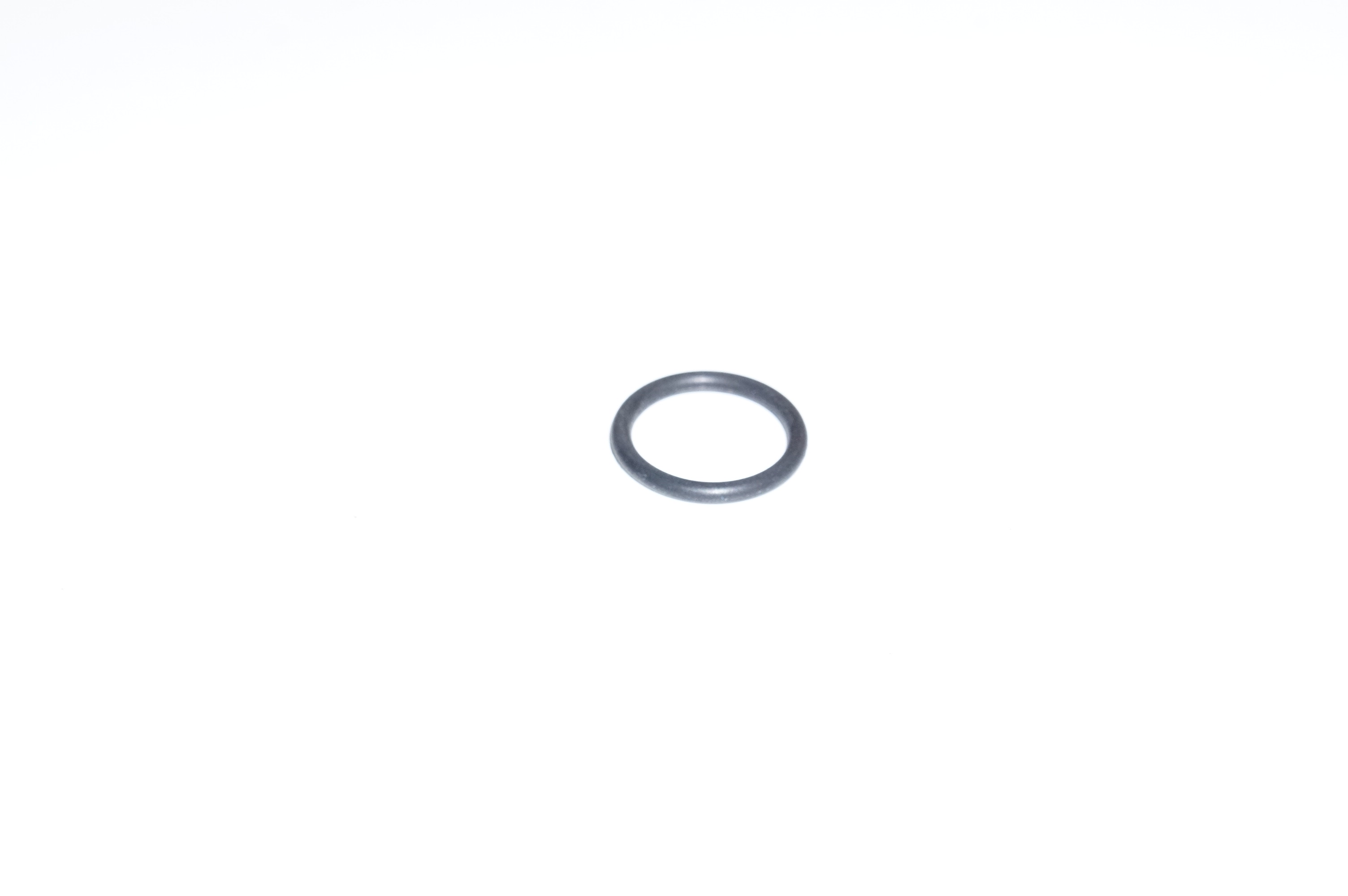

Seal, Tcc Sol Vlv

· T1, M70

· O ring, part of 66, small dia, otr

Loading availability…
Loading…
Add to Cart
68

11503870

2008-2009
Bolt, Hex M6X1X35 10.9 Pressure Control

· T

· Need: 2

· Tcc solvlv

Loading availability…
Loading…
Add to Cart
69

24219581

2008-2008
Switch, A/trns Fluid Press Man Vlv Posn

· T1

· Incls trans fluid temp (tft) sensor

Loading availability…
Loading…
Add to Cart
70

08680764

2008-2008
Bolt, A/trns Fluid Press Man Vlv Posn Sw

· T155, M70

· Need: 2

· M6x1x17.7

Loading availability…
Loading…
Add to Cart
74

29535617

2008-2009
Magnet, A/trns Fluid Pan

· T1, M70

· Part of 75, 4.105

Loading availability…
Loading…
Add to Cart
75

24240207

2008-2009
Pan Kit, A/trns Fluid

· T1, M70

· Incls 74

Loading availability…
Loading…
Add to Cart
76

24231519

2008-2009
Bolt, A/trns Fluid Pan

· T1, M70

· Need: 16

Loading availability…
Loading…
Add to Cart
77

08680764

2008-2009
Bolt, Fluid Pasg Cover

· T1, M70

· Need: 3

· Spacer support plate, m6x1x17.7, 4.265

Loading availability…
Loading…
Add to Cart
78


2008-2009
Plug, Park Pawl Shf Hole

· T

· Part of 79

79

08669911

2008-2009
Pawl Kit, Park

· T1, M70

· Incls 78, 81, inst sht, pawl, plug & shf

Loading availability…
Loading…
Add to Cart
80

08642193

2008-2009
Spring, Park Pawl

· T1, M70

Loading availability…
Loading…
Add to Cart
81


2008-2009
Pawl, Park

· T

· Part of 79

83

08642246

2008-2008
Retainer, Man Shft Shf

· T1, M70

Loading availability…
Loading…
Add to Cart
84

24235194

2008-2008
Shaft Kit, Manual Shift

· T1, M70

· Incls 82, 128.2mm, long, incls seal

Loading availability…
Loading…
Add to Cart
84

24248868

2009-2009
Shaft Kit, Manual Shift Detent Lever

· T1, M70

· Incls 82

Loading availability…
Loading…
Add to Cart
85

24235438

2009-2009
Actuator, Park Pawl

· T1, M70

Loading availability…
Loading…
Add to Cart
85

24227480

2008-2008
Actuator, Park Pawl

· T1, M70

· Incls actuator, rod & springs

Loading availability…
Loading…
Add to Cart
86

08667574

2008-2009
Bracket, Park Pawl Actuator

· T1, M70

Loading availability…
Loading…
Add to Cart
87

11508687

2008-2009
Bolt, Hex, M8X1.25X20, 16.88Thd, 10.9, Pzor

· T

· Need: 2

· Park lock bracket to case

Loading availability…
Loading…
Add to Cart
88

24222404

2008-2008
Lever, Man Shft Dtnt

· T1, M70

Loading availability…
Loading…
Add to Cart
90

10255857

2008-2009
Nut, Hfh, 10x1.5, 6h Thd, 9.8thk, 21.3 O.d., 10, Pzor

· T

· Man shft dtnt, 8.917

Loading availability…
Loading…
Add to Cart
91

00104918

2008-2009
Ball, 1/4" Dia, Chrome Stl

· T

· NO. 10 check ball

Loading availability…
Loading…
Add to Cart
94

24233360

2008-2009
Bolt, Torque Converter Housing

· T1, M70

· Need: 8

· M10x1.5x45, torx

Loading availability…
Loading…
Add to Cart
97

24205899

2008-2009
Plug, T/cv Hsg Acc Hole

· T1, M70

· 28mm with 3 tangs, small cvr

Loading availability…
Loading…
Add to Cart
98

24205900

2008-2009
Cover, T/cv Hsg Acc Hole

· T1, M70

· 62mm with 3 tangs, large cvr

Loading availability…
Loading…
Add to Cart
102

24206953

2008-2009
Housing, T/cv

· T1, LS2,M70

Loading availability…
Loading…
Add to Cart
377


2008-2009
Valve, Press Cont Sol

· T

900

08684426

2008-2009
Pin, 1-2 Accumulator Pstn

· T1, M70

· 4.226

Loading availability…
Loading…
Add to Cart
901


2009-2009
Pin, Man Shft Dtnt Rlr

· T

· Part of 63

901

06261174

2008-2008
Pin, Man Shft Dtnt Rlr

· T1, M70

· Part of 63, 4.311

Loading availability…
Loading…
Add to Cart
902


2008-2009
Roller, Man Shft Dtnt

· T

· Part of 63

Added to Cart

has been added to your cart.

Quantity:

View Cart
