  1. Saab 9-7x Parts
  2. Car Body: Internal
  3. Instrument Panel
  4. Instrument Panel: Electrical
Image Position
Brand		 Part Number
Fitment Years		 Description Inventory Buy
1
15891494

2005-2009
 Panel, Instrument Panel Upper Transmission Range, Trim

· T1,27I,48I

· Incls 2, 8, ebony
Currently Unavailable
$66.25
2
15029793

2005-2009
 Insulator, I/p Upper T/pnl

· T1

· Need: 2

· Part of 1, gray, standoff, 9.743
Back Ordered
$4.12
Request Part

Howdy!

If you'd like to be notified when 15029793 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
3
25713063

2005-2009
 Sensor, Hdlp Auto Cont Amb Lgt

· T1, CJ2

· Dual solar & twilight
Currently Unavailable
$31.95
4
15238355

2005-2005
 Cluster, Inst

· T155(06),-U19
No Longer Available
4
15140613

2006-2006
 Cluster, Inst

· T155(06), U19

· Labeled 15140613
Currently Unavailable
4
15140614

2006-2006
 Cluster, Inst

· T155(06),-U19

· Labeled 15140614
Currently Unavailable
4
25937728

2006-2009
 Cluster, Inst

· T1(06), U19
Currently Unavailable
4
25937729

2006-2009
 Cluster, Inst

· T155(06),-U19
Currently Unavailable
5
11589012

2005-2009
 Bolt, Hwh, M4.2x1.41x25, 16.4 Thd, 12.5 Od, Gm6010m Stl, Gmw4205

· T

· Need: 4

· Inst cstr, 9.665
Currently Unavailable
$4.13
6
15112902

2005-2009
 Switch, Dome Lamp

· T155(06)

· Part of 9
20+ in
$2.82
Add to Cart
7
25603681

2005-2009
 Insulator, I/p Cstr Tr Plt

· T155(06)

· Need: 5

· Part of 9
Back Ordered
$10.68
Request Part

Howdy!

If you'd like to be notified when 25603681 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
8
15058366

2005-2009
 Clip, Instrument Panel Upper Trim Panel

· T1

· Need: 7

· Part of 1
Back Ordered
$5.13
Request Part

Howdy!

If you'd like to be notified when 15058366 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
9
10377307

2005-2009
 Plate, Instrument Panel Cluster Transmission Range, Trim

· T1,27I,48I

· Incls 6, 7, ebony
Back Ordered
$58.87
Request Part

Howdy!

If you'd like to be notified when 10377307 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
10
11516630

2005-2009
 Screw, Rd, M4.2x1.41x20, Type Ab Pt, Gm6010m, Gmw4205

· T

· Need: 4

· Min Order Qty: 4

· I/p cstr TR plt
Back Ordered
$0.85
Request Part

Howdy!

If you'd like to be notified when 11516630 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
11

2005-2009
 Panel, Inst

· T

· Incls 12, 21, 22, 28, 31-33, see group 16.000 "instrument panel & related parts part 1" for detailed illustrated view
Currently Unavailable
12
15782141

2005-2009
 Module, I/p Infl Rst

· T155(06),27I,48I

· Part of 11, ebony
Back Ordered
$63.72
Request Part

Howdy!

If you'd like to be notified when 15782141 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
13
11588650

2005-2009
 Clip, 12X14X16.6, Gm4345M

· T

· Need: 9

· Part of 14
8 in
$8.38
Add to Cart
14
15792817

2005-2009
 Plate, I/p Acsry Center Tr

· T1,27I,48I

· Incls 13, ebony
Currently Unavailable
$97.99
15
10377299

2005-2009

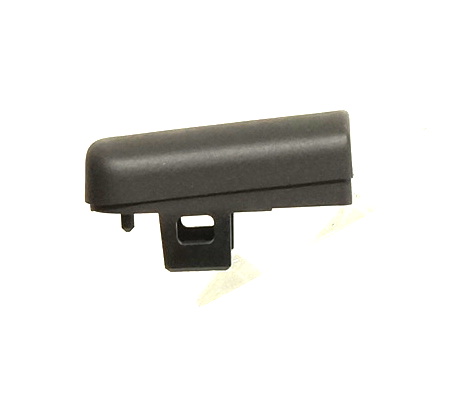

 Cover, I/p Acsry Tr Plt Sw Hole

· T1

· Right side

· Ebony
Currently Unavailable
15
10377300

2005-2009
 Cover, I/p Acsry Tr Plt Sw Hole

· T1

· Left side

· Ebony
Back Ordered
$14.47
Request Part

Howdy!

If you'd like to be notified when 10377300 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
16
15234611

2005-2009
 Switch, Driver Information Display

· T155(06)
Back Ordered
$22.36
Request Part

Howdy!

If you'd like to be notified when 15234611 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
17
11589012

2005-2009
 Bolt, Hwh, M4.2x1.41x25, 16.4 Thd, 12.5 Od, Gm6010m Stl, Gmw4205

· T

· Need: 2

· HTR & A/C cont, 9.665
Currently Unavailable
$4.13
18
15285925

2005-2005
 Control, Htr & AC

· T155(06), CJ2
Currently Unavailable
$64.15
18
15285924

2006-2006
 Control, Htr & AC

· T155(06), CJ2

· 1st des, ident by oem p/n 15285924, for 2nd des see 15845092
Currently Unavailable
18
15845092

2006-2006
 Control, Htr & AC

· T155(06), CJ2

· 2nd des, ident by oem p/n 15845092, for 1st des see 15285924
13 in
$536.41
Add to Cart
18
15845092

2007-2009
 Control, Htr & AC

· T155(06), CJ2
13 in
$536.41
Add to Cart
19
11589012

2005-2009
 Bolt, Hwh, M4.2x1.41x25, 16.4 Thd, 12.5 Od, Gm6010m Stl, Gmw4205

· T

· Need: 3

· Rdo, 9.665
Currently Unavailable
$4.13
20

2005-2009
 Radio, Am/fm Stereo & Clk & Cd Plyr

· T

· See group 09.000 "radio asm" for detailed illustrated view
Currently Unavailable
20

2005-2009
 Radio, Am/fm Stereo & Audio Disc Plyr & Navn

· T

· See group 09.000 "radio asm" for detailed illustrated view
Currently Unavailable
21
11610157

2005-2009
 Nut, Panel, M4.2X1.41, 8.5X11.9, 2.3-2.8 Panel, Fits 11.2X9.2 Hole, 1050, Gmw33

· T

· Need: 2

· Part of 11, 10.701
Back Ordered
$8.69
Request Part

Howdy!

If you'd like to be notified when 11610157 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
22
11610157

2005-2009
 Nut, Panel, M4.2X1.41, 8.5X11.9, 2.3-2.8 Panel, Fits 11.2X9.2 Hole, 1050, Gmw33

· T

· Need: 3

· Part of 11, 10.701
Back Ordered
$8.69
Request Part

Howdy!

If you'd like to be notified when 11610157 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
23
11609681

2005-2009
 Bolt, Instrument Panel Inflatable Restraint Module

· T

· Need: 2

· I/p infl rst MDL
Back Ordered
$6.47
Request Part

Howdy!

If you'd like to be notified when 11609681 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
24
15792813

2005-2009
 Plate, I/p Acsry Tr

· T1,27I,48I

· Incls 27, ebony
No Longer Available
25
25791114

2005-2009
 Switch, R/wdo Wpr & Wa

· T155(06)
Back Ordered
$13.26
Request Part

Howdy!

If you'd like to be notified when 25791114 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
26
15254886

2005-2009
 Switch, Instrument Panel Lamp Dimmer

· T155(06)
20+ in
$2.92
Add to Cart
27
11588650

2005-2009
 Clip, 12X14X16.6, Gm4345M

· T

· Need: 5

· Part of 24
8 in
$8.38
Add to Cart
28
11513599

2005-2009
 Nut, U-type, M4.2x1.41, 0.65-3.80 Panel Thk, Pz

· T

· Need: 6

· Part of 11
Currently Unavailable
$7.64
29
11589012

2005-2009
 Bolt, Hwh, M4.2x1.41x25, 16.4 Thd, 12.5 Od, Gm6010m Stl, Gmw4205

· T

· Need: 6

· Rdo frt SPKR, 9.665
Currently Unavailable
$4.13
30
15013121

2005-2009
 Speaker, Rdo Front

· T1, UQA

· Left side
Back Ordered
$81.58
Request Part

Howdy!

If you'd like to be notified when 15013121 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
30
15042464

2005-2009
 Speaker, Radio Front

· T1, UQA

· Right side
Currently Unavailable
$102.50
31
11610157

2005-2009
 Nut, Panel, M4.2X1.41, 8.5X11.9, 2.3-2.8 Panel, Fits 11.2X9.2 Hole, 1050, Gmw33

· T

· Need: 6

· Part of 11, 10.701
Back Ordered
$8.69
Request Part

Howdy!

If you'd like to be notified when 11610157 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
32
11610157

2005-2009
 Nut, Panel, M4.2X1.41, 8.5X11.9, 2.3-2.8 Panel, Fits 11.2X9.2 Hole, 1050, Gmw33

· T

· Need: 4

· Part of 11, 10.701
Back Ordered
$8.69
Request Part

Howdy!

If you'd like to be notified when 11610157 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
33
11610157

2005-2009
 Nut, Panel, M4.2X1.41, 8.5X11.9, 2.3-2.8 Panel, Fits 11.2X9.2 Hole, 1050, Gmw33

· T

· Need: 4

· Part of 11, 10.701
Back Ordered
$8.69
Request Part

Howdy!

If you'd like to be notified when 11610157 is available again, simply provide your email below.

Thanks,
The eSaabParts.com Team
