  1. Saab 9-7x Parts
  2. Transmission
  3. Transmission Automatic M70
  4. Automatic Transmission (M70) Part 3 (4L70-E) Clutch Gears
Image Position
Brand		 Part Number
Fitment Years		 Description Inventory Buy

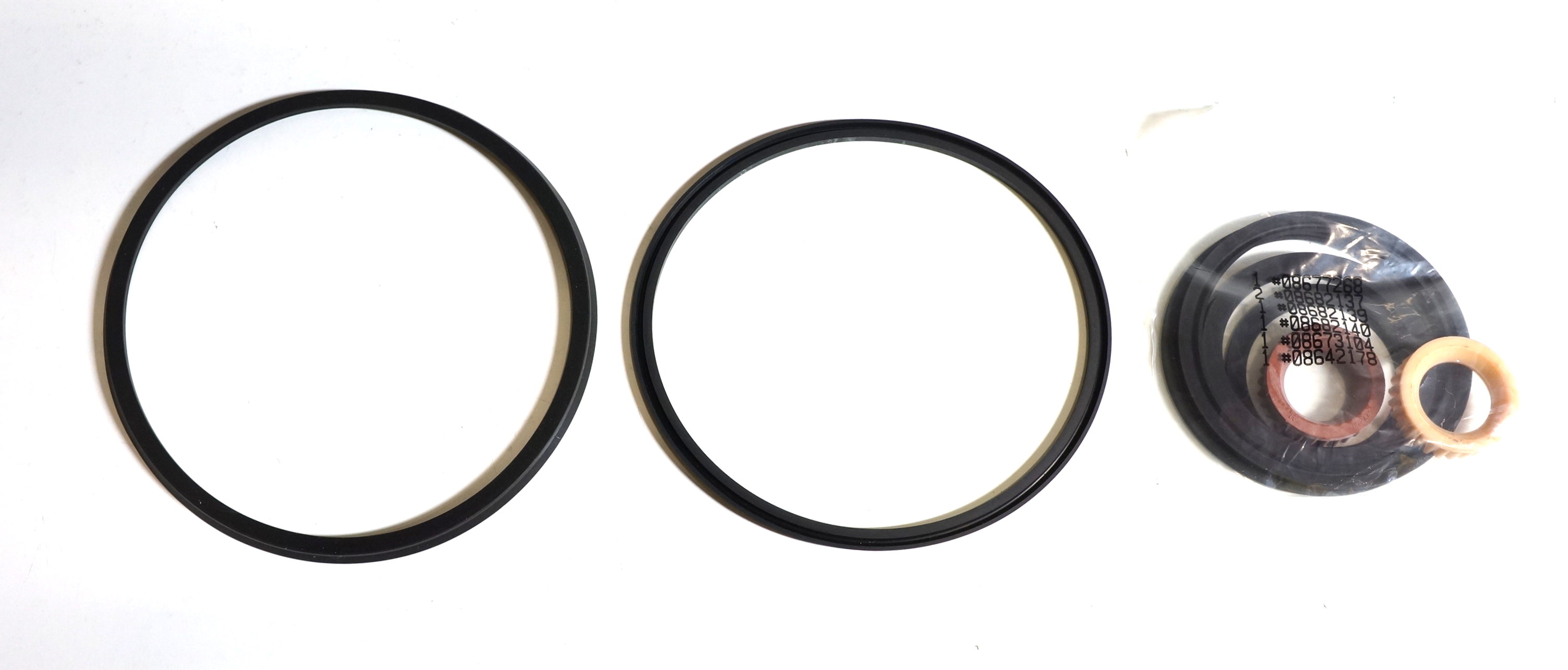

K01
08642919

2008-2009
 Seal Kit, 3-4 Clu Pstn

· T1, M70

· Foa, incls 622, 636
Loading availability…
Loading…
Add to Cart
• 622

2008-2009
 Seal, FWD Clu Hsg

· Included w/ #K01

· T

· O ring, *kit1

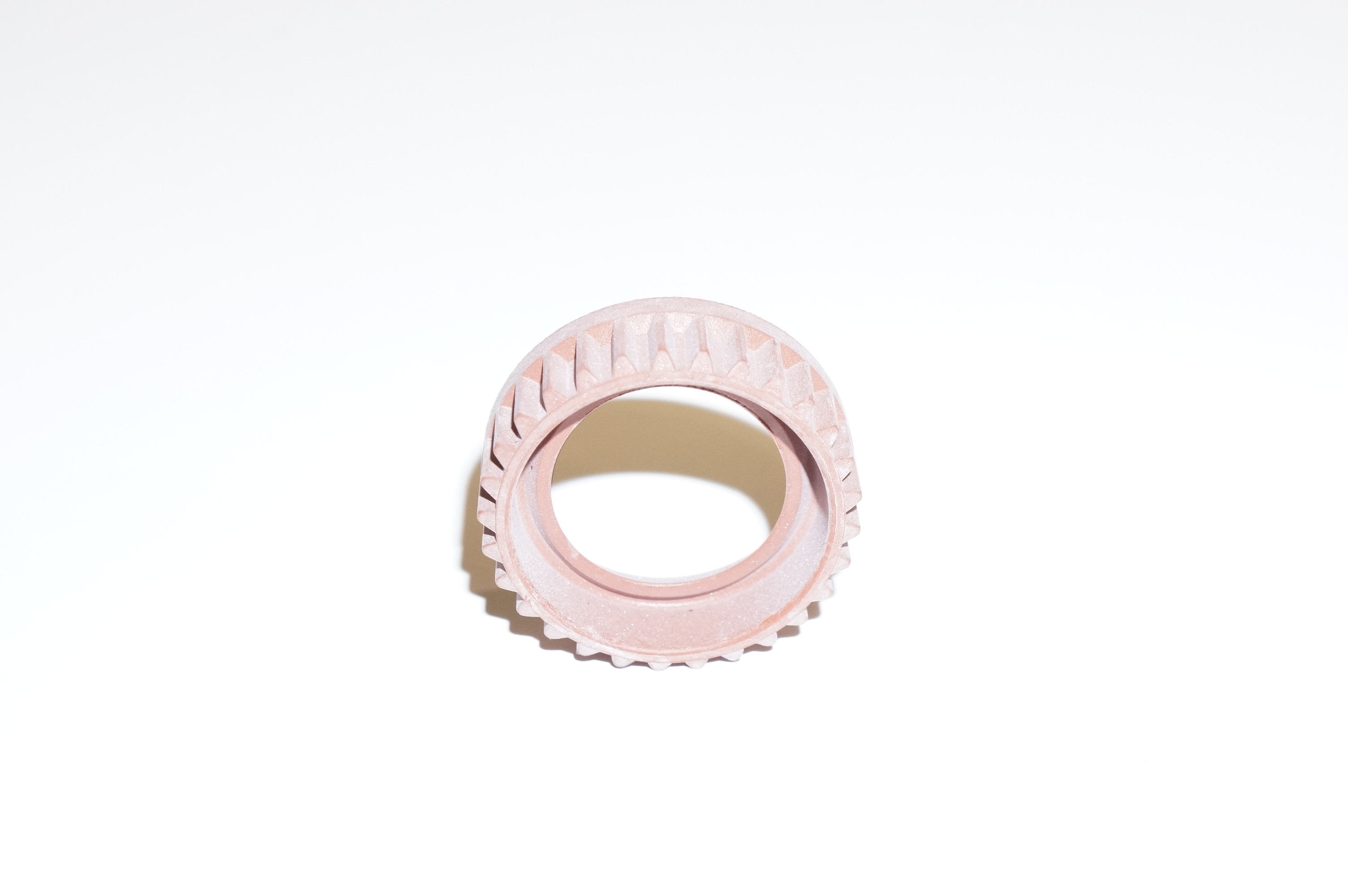

• 636
08677268

2008-2009
 Seal, Output Shf

· Included w/ #K01

· T1, M70

· 29 teeth/spline, *kit1
Loading availability…
Loading…
Add to Cart
K02
24236378

2008-2009
 Gasket Kit, A/Trns Service

· T1, M70

· Incls 608, 618, 619, 661, 696, for additional contents of this kit see parts 2, 5 of this transmission assembly, fwd and overrun pistons
Loading availability…
Loading…
Add to Cart

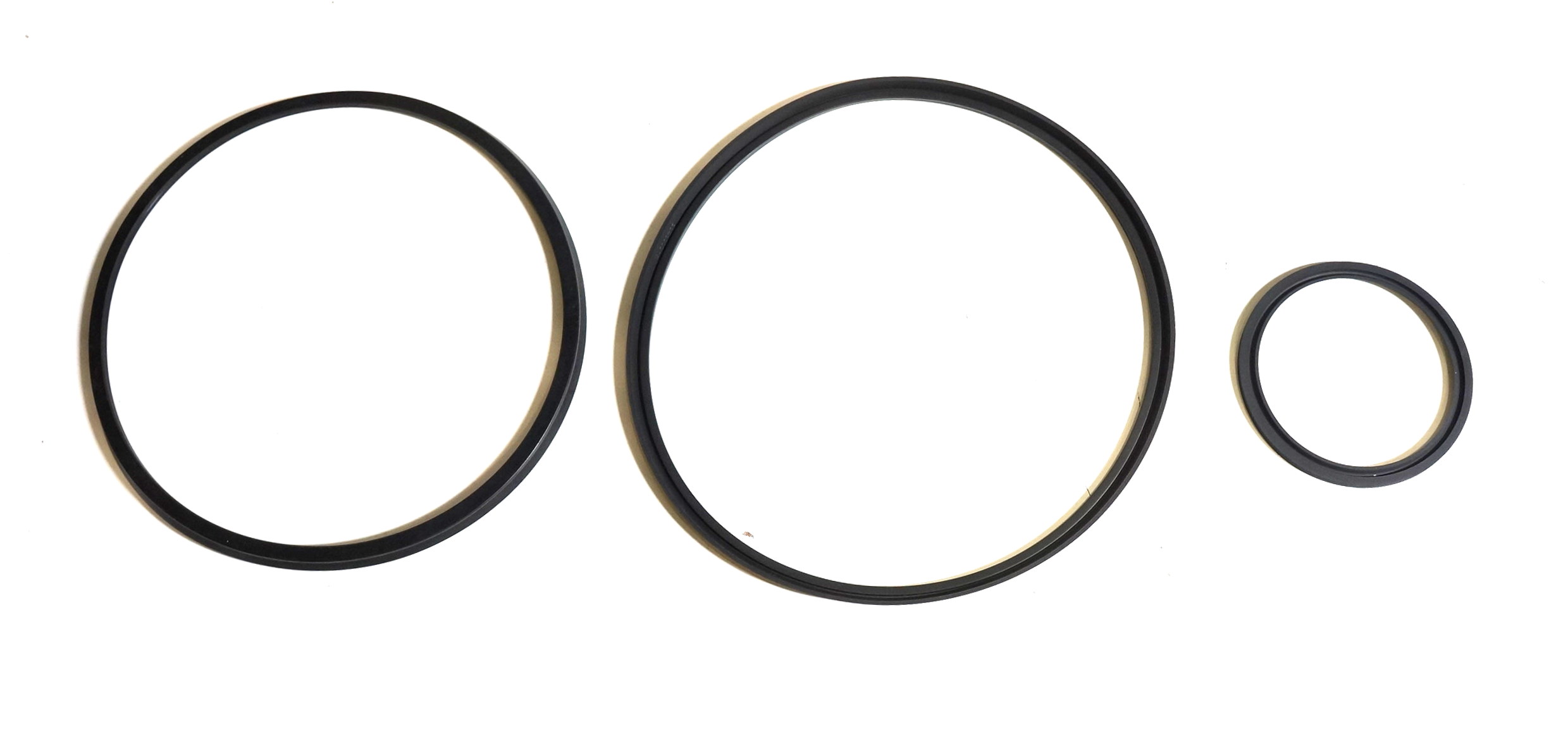

• 608
08683960

2008-2009
 Seal Kit, Rev Input Clu

· Included w/ #K02

· T1, M70

· *kit2
Loading availability…
Loading…
Add to Cart
• 618
24212987

2008-2009
 Seal, Turbine Shaft

· Included w/ #K02

· T1, M70

· O ring, *kit2
Loading availability…
Loading…
Add to Cart

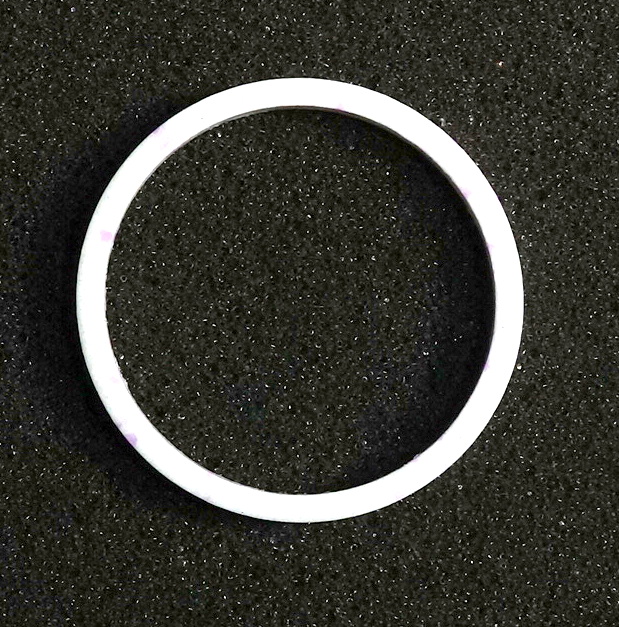

• 619
08667035

2008-2009
 Ring, Input Shf Fluid Seal

· Included w/ #K02

· T1, M70

· Need: 4

· Teflon, *kit2
Loading availability…
Loading…
Add to Cart
• 661
08654141

2008-2009
 Ring, Output Shf Ret

· Included w/ #K02

· T1, M70

· *kit2, kit4
Loading availability…
Loading…
Add to Cart
• 696
08648987

2008-2009
 Seal Kit, Low & Rev Clu

· Included w/ #K02

· T1, M70

· Sq ring CTR, incls inr, otr & inter seals, *kit2, kit6, 4.166
Loading availability…
Loading…
Add to Cart
K04
24248064

2008-2009
 Ring Kit, Ret

· T1, M70

· Incls 610, 635, 638, 661, 693, for additional contents of this kit see part 5 of this transmission assembly
Loading availability…
Loading…
Add to Cart
• 610
08628059

2008-2009
 Ring, Rev Input Clu Spr Ret

· Included w/ #K04

· T1, M70

· *kit4
Loading availability…
Loading…
Add to Cart
• 635
11500692

2008-2009
 Ring, Overrun Clu Spr Ret

· Included w/ #K04

· T

· Overrun clu spr ret, *kit4
Loading availability…
Loading…
Add to Cart

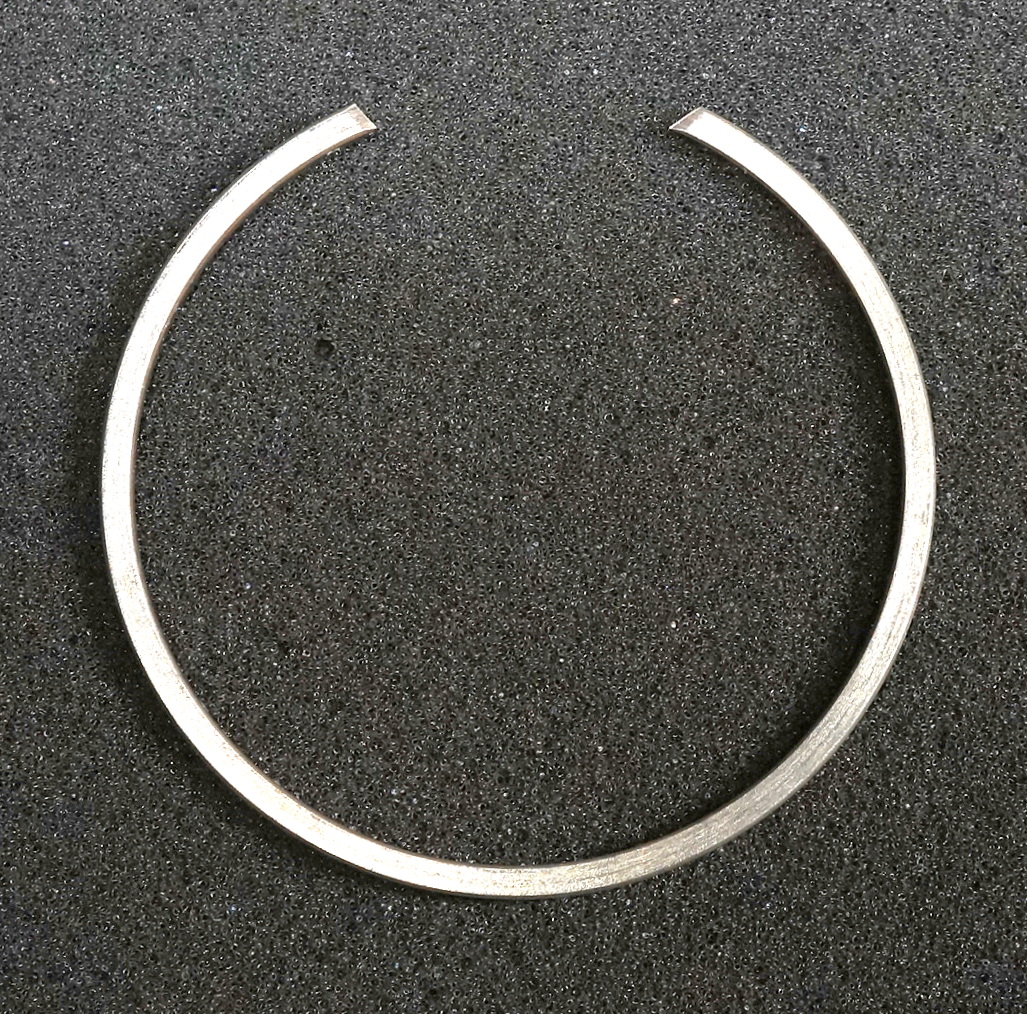

• 638
08647083

2008-2009
 Ring, Overrun Clu Hub Ret

· Included w/ #K04

· T1, M70

· Part of 642, *kit4
Loading availability…
Loading…
Add to Cart
• 661
08654141

2008-2009
 Ring, Output Shf Ret

· Included w/ #K04

· T1, M70

· *kit2, kit4
Loading availability…
Loading…
Add to Cart
• 693
08647337

2008-2009
 Ring, Low & Rev Clu Spr Ret Ret

· Included w/ #K04

· T1, M70

· *kit4, kit6, 4.159
Loading availability…
Loading…
Add to Cart
K05
24232835

2008-2009
 Plate Kit, FWD Clu

· T1, M70

· Incls 649, incls instr sheet & fwd clutch plates fibers and steels
Loading availability…
Loading…
Add to Cart
• 649
08654325

2008-2009
 Plate, FWD Clu

· Included w/ #K05

· T1, M70

· Need: 5

· Illustrated AS 649a, steel, *kit5, kit9
Loading availability…
Loading…
Add to Cart
• 649
24232517

2008-2009
 Plate, FWD Clu

· Included w/ #K05

· T1, M70

· Need: 5

· Illustrated AS 649b, double parallel grooves, *kit5, kit9
Loading availability…
Loading…
Add to Cart
K06
08687996

2008-2009
 Plate Kit, Low & Rev Clu

· T1, M70

· Incls 678, 679, 682a, 682b, 682d, 693, 695, 696, steel plates
Loading availability…
Loading…
Add to Cart
• 678
24217231

2008-2009
 Roller, Low Clutch

· Included w/ #K06

· T1, M70

· Part of 679, *kit6
Loading availability…
Loading…
Add to Cart
• 679
24217232

2008-2009
 Support, Low & Rev Clu

· Included w/ #K06

· T1, M70

· Incls 678, *kit6
Loading availability…
Loading…
Add to Cart
• 682
08676362

2008-2009
 Plate, Low & Rev Clu

· Included w/ #K06

· T1, M70

· Waved, illustrated AS 682a, *kit6
Loading availability…
Loading…
Add to Cart
• 682
24205269

2008-2009
 Plate, Low & Rev Clu

· Included w/ #K06

· T1, M70

· Illustrated AS 682b, 1.314mm, has holes in turb plates, *kit6
Loading availability…
Loading…
Add to Cart
• 682
24205270

2008-2009
 Plate, Low & Rev Clu

· Included w/ #K06

· T1, M70

· Illustrated AS 682b, 2.344mm, has holes in turb plates, steel, *kit6
Loading availability…
Loading…
Add to Cart
• 682
24205268

2008-2009
 Plate, Low & Rev Clu

· Included w/ #K06

· T1, M70

· Illustrated AS 682d, 1.829mm, has holes in turb plates, steel, *kit6
Loading availability…
Loading…
Add to Cart
• 693
08647337

2008-2009
 Ring, Low & Rev Clu Spr Ret Ret

· Included w/ #K06

· T1, M70

· *kit4, kit6, 4.159
Loading availability…
Loading…
Add to Cart
• 695
08685549

2008-2009
 Piston, Low & Rev Clu

· Included w/ #K06

· T1, M70

· *kit6
Loading availability…
Loading…
Add to Cart
• 696
08648987

2008-2009
 Seal Kit, Low & Rev Clu

· Included w/ #K06

· T1, M70

· Sq ring CTR, incls inr, otr & inter seals, *kit2, kit6, 4.166
Loading availability…
Loading…
Add to Cart
K09
24244616

2008-2009
 Plate Kit, Clu

· T1, M70

· Incls 612b, 645b, 649, 682c
Loading availability…
Loading…
Add to Cart
• 612
08673605

2008-2009
 Plate, Rev Input Clu

· Included w/ #K09

· T1, M70

· Need: 4

· Illustrated AS 612b, 153mm dia, fiber, *kit9
Loading availability…
Loading…
Add to Cart
• 645
24210766

2008-2009
 Plate, Overrun Clutch

· Included w/ #K09

· T1, M70

· Need: 2

· Illustrated AS 645b, 1.93-2.13 thk, grooved, *kit9
Loading availability…
Loading…
Add to Cart
• 649
08654325

2008-2009
 Plate, FWD Clu

· Included w/ #K09

· T1, M70

· Need: 5

· Illustrated AS 649a, steel, *kit5, kit9
Loading availability…
Loading…
Add to Cart
• 649
24232517

2008-2009
 Plate, FWD Clu

· Included w/ #K09

· T1, M70

· Need: 5

· Illustrated AS 649b, double parallel grooves, *kit5, kit9
Loading availability…
Loading…
Add to Cart

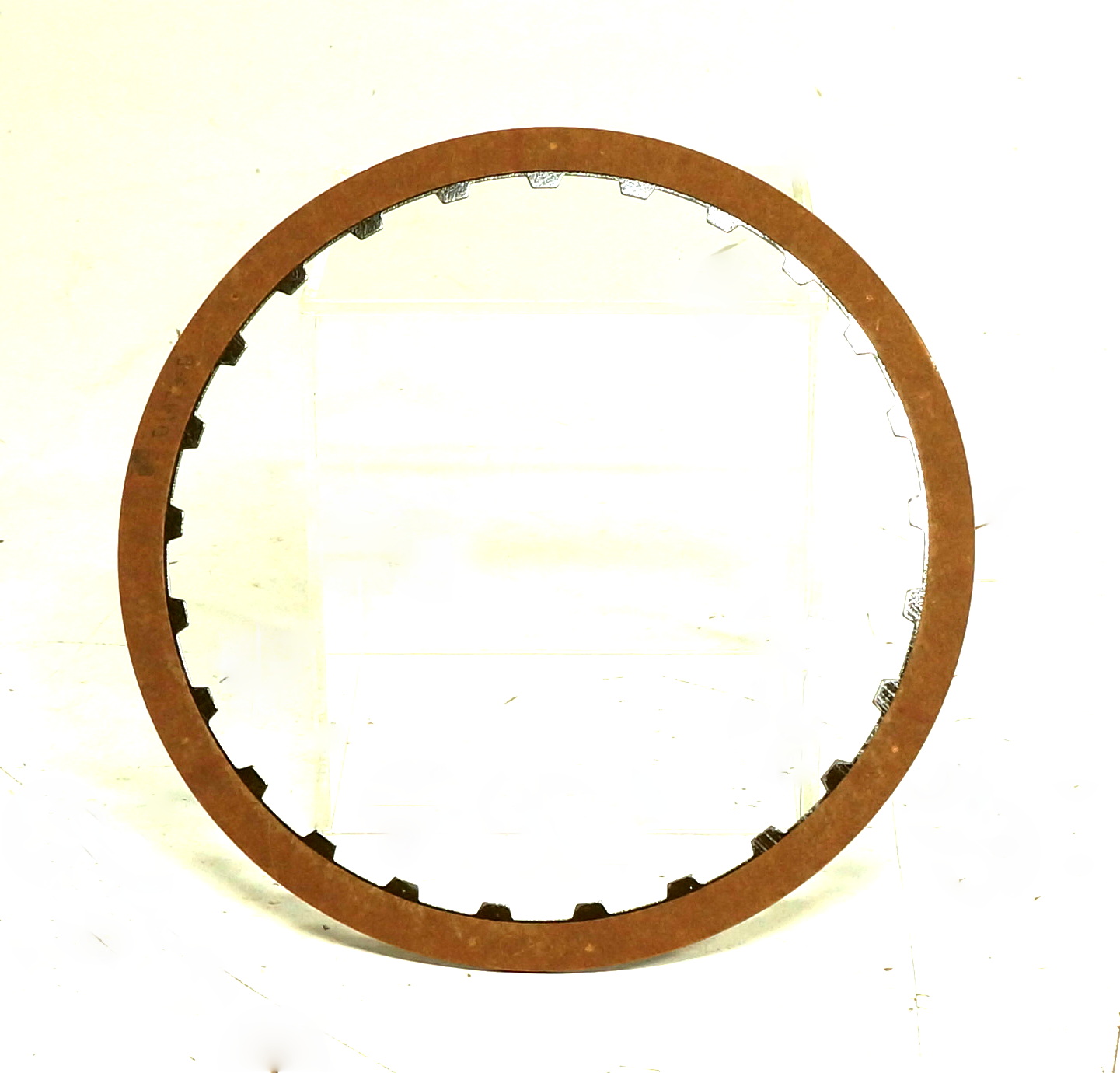

• 682
24216946

2008-2009
 Plate, Low & Rev Clu

· Included w/ #K09

· T1, M70

· Need: 5

· Illustrated AS 682c, fiber, segmented-DO not mix segmented with non-segmented clutch plates, *kit9
Loading availability…
Loading…
Add to Cart
7
24241233

2008-2009
 Bushing, Propeller Shaft Front Slip Yoke

· T1

· Part of trans case
Loading availability…
Loading…
Add to Cart
600
08685244

2008-2009
 Spring, 3-4 Clu

· T1, M70

· Part of 654, 105.12mm o.D
Loading availability…
Loading…
Add to Cart
601
08642041

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 1.52-1.63mm, 4.226
Loading availability…
Loading…
Add to Cart
602
24232236

2008-2009
 Band, 2-4

· T1, M70
Loading availability…
Loading…
Add to Cart
603
08642905

2008-2009
 Bushing, Rev Input Clu Hsg Front

· T1, M70

· Part of 605
Loading availability…
Loading…
Add to Cart
605
08681295

2008-2008
 Housing, Rev Input Clu

· T1, M70,M30

· Incls 603, 606
Loading availability…
Loading…
Add to Cart
605
08681295

2009-2009
 Housing, Rev Input Clu

· T1, M30,M70

· Incls 603, 606
Loading availability…
Loading…
Add to Cart
606
08628917

2008-2009
 Bushing, Dir Clu Hsg Rr

· T1, M70

· Part of 605
Loading availability…
Loading…
Add to Cart
607
08667841

2008-2009
 Piston, Rev Input Clu

· T1, M70

· .095 hole
Loading availability…
Loading…
Add to Cart
609
08647284

2008-2009
 Spring, Rev Input Clu

· T1, M70
Loading availability…
Loading…
Add to Cart
611
08663074

2008-2009
 Plate, Rev Input Clu

· T1, M70

· Waved
Loading availability…
Loading…
Add to Cart
612
24205267

2008-2009
 Plate, Rev Input Clu

· T1, M70

· Need: 4

· Illustrated AS 612a, 1.97mm thick, with holes in turb plates, steel
Loading availability…
Loading…
Add to Cart
613
24212463

2008-2009
 Plate, Rev Input Clu Bkg

· T1, M70

· 5.787-5.947mm
Loading availability…
Loading…
Add to Cart
613
24212464

2008-2009
 Plate, Rev Input Clu Bkg

· T1, M70

· 6.518-6.678mm
Loading availability…
Loading…
Add to Cart
613
24212465

2008-2009
 Plate, Reverse Input Clutch Backing

· T1, M70

· 7.409-7.249mm
Loading availability…
Loading…
Add to Cart
614
08667022

2008-2009
 Ring, Rev Input Clu Bkg Plt Ret

· T1, M70
Loading availability…
Loading…
Add to Cart
615
08642066

2008-2009
 Bearing, Rev Input Clu Hsg Thr

· T1, M70
Loading availability…
Loading…
Add to Cart
616
08642067

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 1.87-1.97mm, 4.158
Loading availability…
Loading…
Add to Cart
616
08642068

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 2.04-2.14mm, 4.158
Loading availability…
Loading…
Add to Cart
616
08642069

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 2.21-2.31mm, 4.158
Loading availability…
Loading…
Add to Cart
616
08642070

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 2.38-2.48mm, 4.158
Loading availability…
Loading…
Add to Cart
616
08642071

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 2.55-2.65mm, 4.158
Loading availability…
Loading…
Add to Cart
616
08642072

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 2.72-2.82mm, 4.158
Loading availability…
Loading…
Add to Cart
616
08642073

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 2.89-2.99mm, 4.158
Loading availability…
Loading…
Add to Cart
616
08642074

2008-2009
 Washer, Rev Input Clu Hsg Thr

· T1, M70

· 3.06-3.16mm, 4.158
Loading availability…
Loading…
Add to Cart
617
08685839

2008-2009
 Valve, Turb Shf Ball Chk

· T1, M70
Loading availability…
Loading…
Add to Cart
620
24208262

2008-2009
 Valve, 3-4 Clu Hsg Ball Chk

· T1, M70

· Part of 621
Loading availability…
Loading…
Add to Cart
621
24230654

2008-2009
 Housing, 3-4 Clu

· T1, M70

· with input shf, incls 620, 688, 698
Loading availability…
Loading…
Add to Cart
623
24200290

2008-2009
 Piston, 3-4 Clu

· T1, M70
Loading availability…
Loading…
Add to Cart
625
08685043

2008-2009
 Ring, 3-4 Clu Appl

· T1, M70

· Part of 654, 1 bar
Loading availability…
Loading…
Add to Cart
626
08685244

2008-2009
 Spring, 3-4 Clu

· T1, M70

· 105.12mm o.D
Loading availability…
Loading…
Add to Cart
627
24205181

2008-2009
 Valve, FWD Clu Hsg Ball Chk

· T1, M70

· Part of 628, short & wide
Loading availability…
Loading…
Add to Cart
628
24205298

2008-2009
 Housing, FWD Clu

· T1, M70

· Incls 627, incls housings & valve
Loading availability…
Loading…
Add to Cart
630
24205272

2008-2009
 Piston, FWD Clu

· T1, M70

· Incls sealing element
Loading availability…
Loading…
Add to Cart
632
24205273

2008-2009
 Piston, Overrun Clu

· T1, M70

· Incls 633, steel with integral seal
Loading availability…
Loading…
Add to Cart
633
07002117

2008-2009
 Ball, 3/16" High Carbon Chrome Alloy

· T

· Part of 632
Loading availability…
Loading…
Add to Cart
634
24206085

2008-2009
 Spring, Overrun Clutch

· T1, M70
Loading availability…
Loading…
Add to Cart
637
08642162

2008-2009
 Bearing, Input Sun Gr Thr

· T1, M70
Loading availability…
Loading…
Add to Cart
639

2008-2009
 Hub, Overrun Clu

· T

· Part of 642
640
24229966

2008-2009
 Gear, Input Sun

· T1, M70

· Part of 642
Loading availability…
Loading…
Add to Cart
642
24241477

2008-2009
 Sprag, FWD Clu

· T1, M70

· Incls 638-640, 643, 644, 657, 659, service bulletin#08-07-30-017 applies to this part, hvy duty
Loading availability…
Loading…
Add to Cart
643

2008-2009
 Retainer, FWD Clu Rlr

· T

· Part of 642
644

2008-2009
 Race, FWD Clu Rlr Otr

· T

· Part of 642

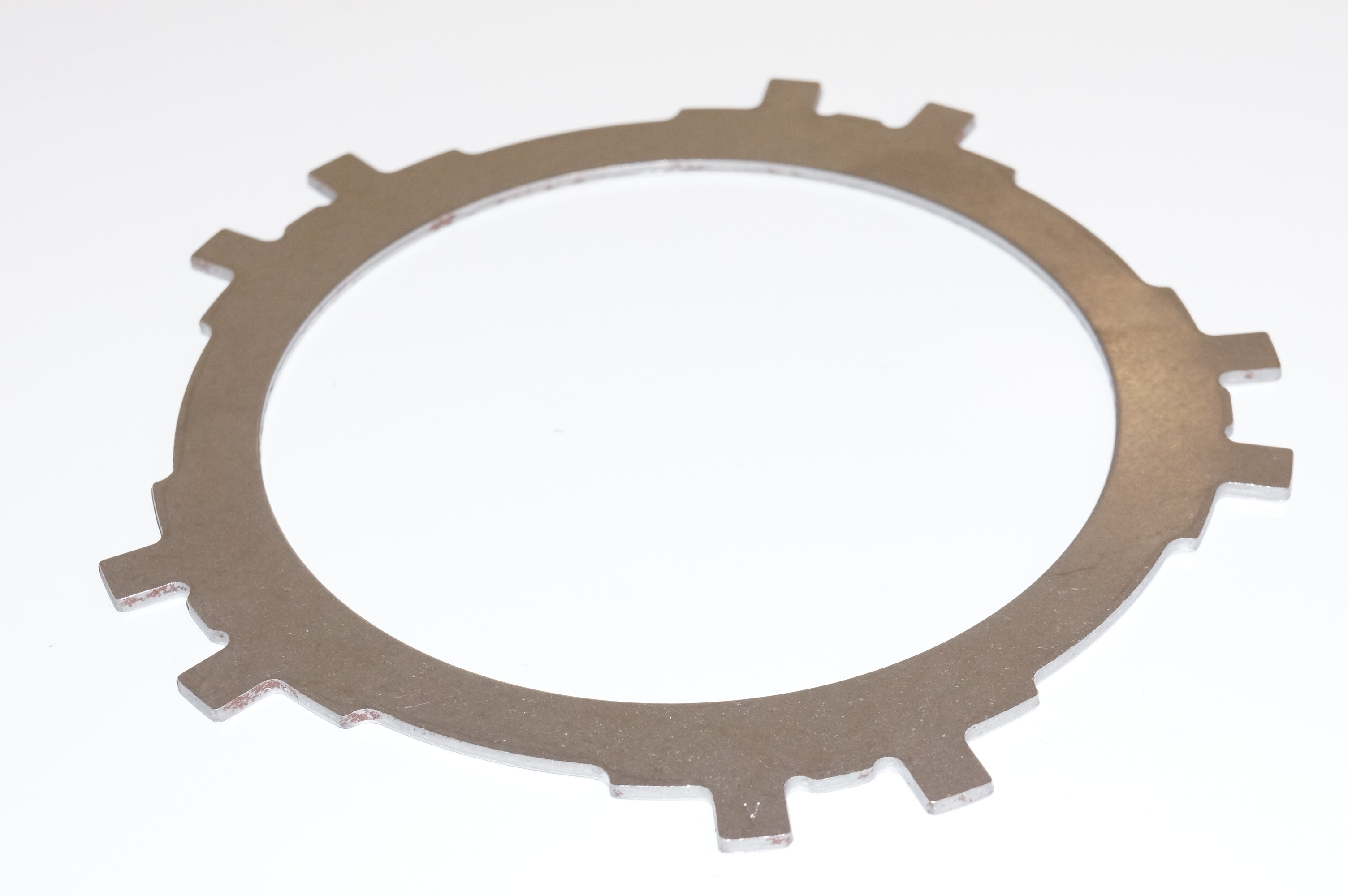

645
08642154

2008-2009
 Plate, Overrun Clu

· T1, M70

· Need: 2

· Illustrated AS 645a, 2.34mm thk, flat steel
Loading availability…
Loading…
Add to Cart
646
24212462

2008-2009
 Plate, FWD Clu Apply

· T1, M70
Loading availability…
Loading…
Add to Cart
648
08647058

2008-2009
 Plate, FWD Clu

· T1, M70

· Waved
Loading availability…
Loading…
Add to Cart
650
24212466

2008-2009
 Plate, FWD Clu Bkg

· T1, M70

· 4.56mm-4.71mm
Loading availability…
Loading…
Add to Cart
650
24212467

2008-2009
 Plate, FWD Clu Bkg

· T1, M70

· 5.15mm-5.30mm
Loading availability…
Loading…
Add to Cart
650
24212468

2008-2009
 Plate, FWD Clu Bkg

· T1, M70

· 5.74mm-5.89mm
Loading availability…
Loading…
Add to Cart
650
24212469

2008-2009
 Plate, FWD Clu Bkg

· T1, M70

· 6.33mm-6.48mm
Loading availability…
Loading…
Add to Cart
650
24212470

2008-2009
 Plate, Front Wheel Drive, Forward Clutch Backing

· T1, M70

· 6.9-7.1mm
Loading availability…
Loading…
Add to Cart
651
08642170

2008-2009
 Ring, FWD Clu Bkg Plt Ret

· T1, M70
Loading availability…
Loading…
Add to Cart
653
24217451

2008-2009
 Plate, 3-4 Clu Apply

· T1, M70

· Part of 654
Loading availability…
Loading…
Add to Cart
654
24244615

2008-2009
 Plate Kit, 3-4 Clu

· T1, M70

· Incls 600, 625, 653
Loading availability…
Loading…
Add to Cart
655
24217453

2008-2009
 Plate, 3-4 Clu Bkg

· T1, M70

· 4.18mm
Loading availability…
Loading…
Add to Cart
655
24217516

2008-2009
 Plate, 3-4 Clu Bkg

· T1, M70

· 5.61mm
Loading availability…
Loading…
Add to Cart
655
24217517

2008-2009
 Plate, 3-4 Clu Bkg

· T1, M70

· 6.12mm
Loading availability…
Loading…
Add to Cart
655
24217450

2008-2009
 Plate, 3-4 Clu Bkg

· T1, M70

· 3.67mm
Loading availability…
Loading…
Add to Cart
655
24212460

2008-2009
 Plate, 3-4 Clu Bkg

· T1, M70

· 4.79-4.99mm
Loading availability…
Loading…
Add to Cart
656
08663636

2008-2009
 Ring, 3-4 Clu Bkg Plt Ret

· T1, M70
Loading availability…
Loading…
Add to Cart
657
24241493

2008-2009
 Bushing, Output Shf

· T1, M70

· Need: 2

· Part of 642
Loading availability…
Loading…
Add to Cart
659
24241493

2008-2009
 Bushing, Output Shf

· T1, M70

· Need: 2

· Part of 642
Loading availability…
Loading…
Add to Cart
662
24241248

2008-2009
 Carrier, Input

· T1, M70
Loading availability…
Loading…
Add to Cart
663
24217328

2008-2009
 Bearing, Reaction Carr Thr

· T1, M70

· 73.7 id X 91 od
Loading availability…
Loading…
Add to Cart
663
08642215

2008-2009
 Bearing, Reaction Carr Thr

· T1, M70

· 52.42 id X 72.4 od, 4.176
Loading availability…
Loading…
Add to Cart
664

2008-2009
 Gear, Input Intl

· T
665

2008-2009
 Bushing, Input Carr

· T

· Part of 666
666
24241255

2008-2009
 Shaft, Reaction Carr

· T1, M70

· Incls 665, 667
Loading availability…
Loading…
Add to Cart
667
08642907

2008-2009
 Bushing, Reaction Carr Shf Rr

· T1, M70

· Part of 666
Loading availability…
Loading…
Add to Cart
668
08642201

2008-2009
 Ring, Reaction Carr Shf Ret

· T1, M70
Loading availability…
Loading…
Add to Cart
669
08642331

2008-2009
 Washer, Reaction Sun Gr Shell Thr

· T1, M70

· 4.176
Loading availability…
Loading…
Add to Cart
670
24217145

2008-2009
 Shell, Reaction Sun Gr

· T1, M70
Loading availability…
Loading…
Add to Cart

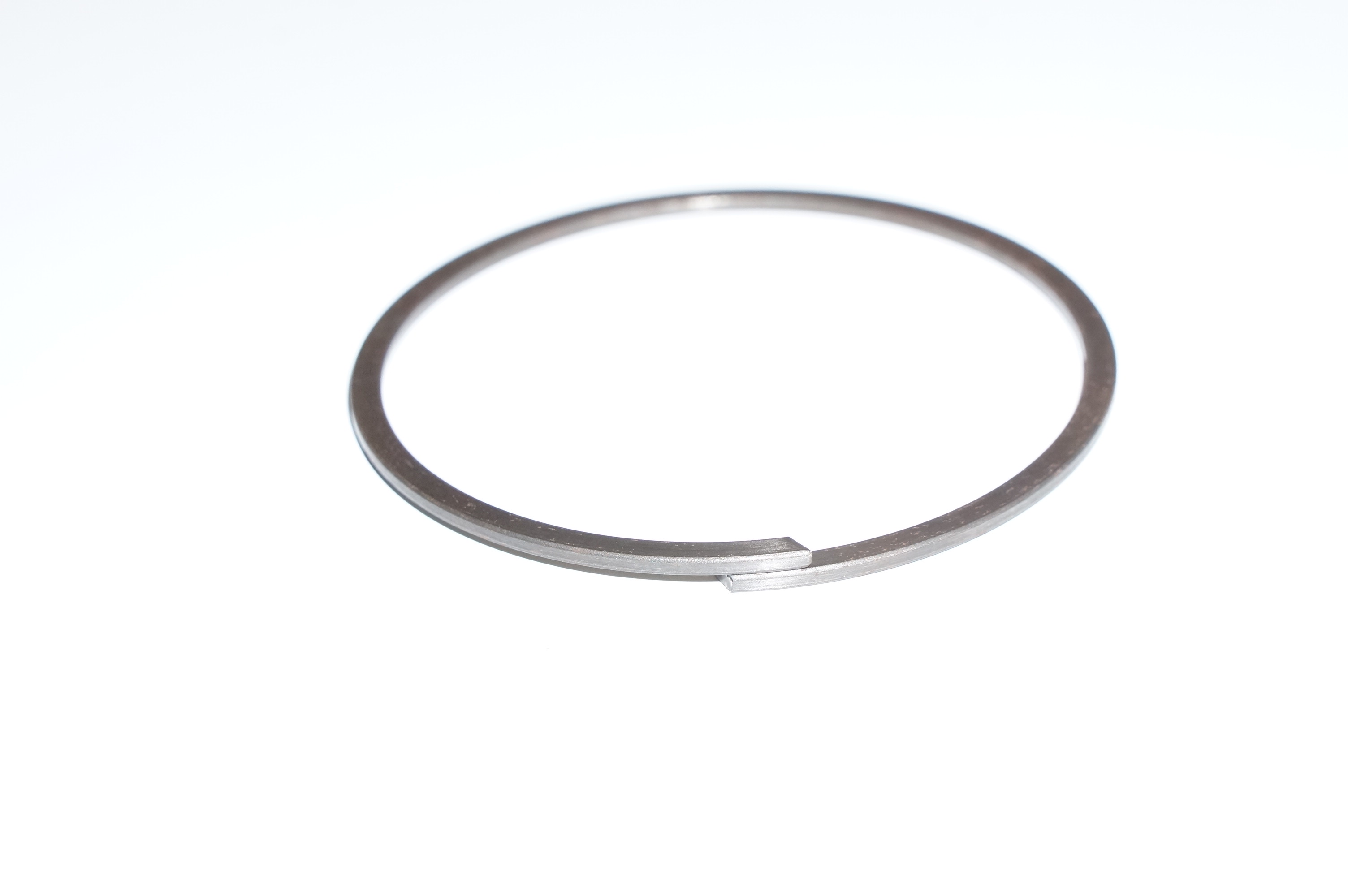

671
08681553

2008-2009
 Ring, Reaction Sun Gr Ret

· T1, M70
Loading availability…
Loading…
Add to Cart
672
08642909

2008-2009
 Bushing, Reaction Sun Gr

· T1, M70

· Part of 673
Loading availability…
Loading…
Add to Cart
673
24241250

2008-2009
 Gear, Reaction Sun

· T1, M70

· Incls 672
Loading availability…
Loading…
Add to Cart
674
08642331

2008-2009
 Washer, Reaction Sun Gr Shell Thr

· T1, M70

· 4.176
Loading availability…
Loading…
Add to Cart
675
08673300

2008-2009
 Race, Low Clu Rlr Inr

· T1, M70
Loading availability…
Loading…
Add to Cart
676
24200278

2008-2009
 Ring, Low & Rev Clu Supt Ret

· T1, M70
Loading availability…
Loading…
Add to Cart
677
06261051

2008-2009
 Ring, Low Clu Rlr Ret

· T1, M70

· Need: 2
Loading availability…
Loading…
Add to Cart
680
06261415

2008-2009
 Spring, Low & Rev Clu Supt

· T1, M70
Loading availability…
Loading…
Add to Cart
681
24227591

2008-2009
 Carrier, Reaction

· T1, M70

· Incls 697
Loading availability…
Loading…
Add to Cart
683
08642215

2008-2009
 Bearing, Reaction Carr Thr

· T1, M70

· To supt, 52.42 id X 72.4 od, 4.176
Loading availability…
Loading…
Add to Cart
684
24243410

2008-2009
 Gear, Reaction Intl

· T1, M70
Loading availability…
Loading…
Add to Cart
685
24225931

2008-2009
 Support, Reaction Intl Gear

· T1, M70
Loading availability…
Loading…
Add to Cart
686
08642220

2008-2009
 Ring, Int Reaction Gr Supt Ret

· T1, M70
Loading availability…
Loading…
Add to Cart
687
24230983

2008-2009
 Shaft, Output

· T1, M70
Loading availability…
Loading…
Add to Cart
688

2008-2009
 Plug, 3-4 Clu Hsg Fluid Pasg Hole

· T

· Part of 621
690

2008-2009
 Sleeve, Output Shf

· T

· Not reqd
691

2008-2009
 Seal, Output Shf

· T

· Not req'D
692
24217327

2008-2009
 Bearing, Int Reaction Gr Supt Thr

· T155, LS2,M70

· 43.0 id X 64.57 od
Loading availability…
Loading…
Add to Cart
694
08642227

2008-2009
 Spring, Low & Rev Clu

· T1, M70
Loading availability…
Loading…
Add to Cart
697

2008-2009
 Deflector, Reaction Carr Thr Brg Lub

· T

· Part of 681
698
08663707

2008-2009
 Orifice, Lub Fluid

· T1, M70

· Part of 621, 4.3mm dia
Loading availability…
Loading…
Add to Cart
699

2008-2009
 Wheel, Veh Spd Sen Reluctor

· T

Added to Cart

has been added to your cart.

Quantity:

View Cart
