Position Brand	Part Number Fitment Years	Description	Inventory	Buy
K01	24236378 2005-2005	Gasket Kit, A/Trns Service · T1, M30 · Incls 201, 244, for additional contents of this kit see CK automatic transmission m30 part 2, 3, fwd and overrun pistons	Back Ordered	$147.83 Request Part Howdy! If you'd like to be notified when 24236378 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
• 201	2005-2005	Ring, A/trns Fluid Pump Slide Fluid Seal · Included w/ #K01 · T · Part of 200, 212, *kit1, kit2	Currently Unavailable
• 244	08654491 2005-2005	Retainer, T/cv Fluid Seal · Included w/ #K01 · T1, M30 · Part of 200, *kit1	Back Ordered	$3.62 Request Part Howdy! If you'd like to be notified when 08654491 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
K02	08634906 2005-2005	Seal Kit, A/trns Fluid Pump Slide · T1, M30 · Incls 201, 202, 208, 209, incls ring, seals & supt	Back Ordered	$9.99 Request Part Howdy! If you'd like to be notified when 08634906 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
• 201	2005-2005	Ring, A/trns Fluid Pump Slide Fluid Seal · Included w/ #K02 · T · Part of 200, 212, *kit1, kit2	Currently Unavailable
• 202	2005-2005	Seal, A/trns Oil Pump Slide · Included w/ #K02 · T · O ring, part of 200, 212, *kit2	Currently Unavailable
• 208	2005-2005	Support, A/trns Fluid Pump Slide Seal · Included w/ #K02 · T · Part of 200, 212, *kit2	Currently Unavailable
• 209	2005-2005	Seal, A/trns Fluid Pump Slide · Included w/ #K02 · T · Part of 200, 212, *kit2	Currently Unavailable
K03	24244598 2005-2005	Valve Kit, Rev Boost · T1, LL8,M30 · 2nd des, incls 219, 220, regular, used on vehicles built AT romulus or toledo on or after 3/07/05, for 1st des see 24224510	Currently Unavailable
• 219	2005-2005	Valve, Rev Boost · Included w/ #K03 · T · Part of 215, *kit3	Currently Unavailable
• 220	2005-2005	Sleeve, Rev Boost Vlv · Included w/ #K03 · T · Part of 215, *kit3	Currently Unavailable
K04	24248064 2005-2005	Ring Kit, Ret · T1, M30 · Incls 221, 222, for additional contents of this kit see CK automatic transmission m30 part 3	Currently Unavailable
• 221	11503348 2005-2005	Ring, T/v Boost Vlv Bush Ret · Included w/ #K04 · T1, M30 · Part of 215, *kit4, 4.216	Back Ordered	$9.04 Request Part Howdy! If you'd like to be notified when 11503348 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
• 222	00274267 2005-2005	Ring, Tcc Vlv Stop Ret · Included w/ #K04 · T1, M30 · Part of 215, *kit4, 8.934	Back Ordered	$6.12 Request Part Howdy! If you'd like to be notified when 00274267 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
200	2005-2005	Body Kit, A/trns Fluid Pump · T · Incls 201-213, 242-244	Currently Unavailable
203	24212478 2005-2005	Slide, A/trns Fluid Pump · T1, M30 · Part of 200, 17.9545mm, slide id mark = 1 dimple, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	Back Ordered	$30.69 Request Part Howdy! If you'd like to be notified when 24212478 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
203	24212479 2005-2005	Slide, A/trns Fluid Pump · T1, M30 · Part of 200, 17.9675mm, slide id mark = 1 dimple, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	Back Ordered	$33.31 Request Part Howdy! If you'd like to be notified when 24212479 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
203	24212480 2005-2005	Slide, A/trns Fluid Pump · T1, M30 · Part of 200, 17.9805mm, slide id mark = 1 dimple, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	Back Ordered	$28.47 Request Part Howdy! If you'd like to be notified when 24212480 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
203	24212481 2005-2005	Slide, A/trns Fluid Pump · T1, M30 · Part of 200, 17.9935mm, slide id mark = 1 dimple, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	Back Ordered	$28.08 Request Part Howdy! If you'd like to be notified when 24212481 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
203	24212482 2005-2005	Slide, A/trns Fluid Pump · T1, M30 · Part of 200, 18.0065mm, slide id mark = 1 dimple, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	Back Ordered	$23.96 Request Part Howdy! If you'd like to be notified when 24212482 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
204	08634098 2005-2005	Spring, A/trns Fluid Pump Slide Piv Pin · T1, M30 · Part of 200	No Longer Available
205	08634097 2005-2005	Pin, A/trns Fluid Pump Slide Piv · T1, M30 · Part of 200	Back Ordered	$0.60 Request Part Howdy! If you'd like to be notified when 08634097 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
210	24201144 2005-2005	Ring, A/trns Fluid Pump Vane · T1, M30 · Need: 2 · Part of 200	Back Ordered	$10.77 Request Part Howdy! If you'd like to be notified when 24201144 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
211	24205410 2005-2005	Guide, A/trns Fluid Pump Rot · T1, M30 · Part of 200, 212, 13 vane	Back Ordered	$9.73 Request Part Howdy! If you'd like to be notified when 24205410 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
212	24219538 2005-2005	Rotor Pkg, A/trns Fluid Pump · T1, M30 · Part of 200, incls 201, 202, 208, 209, 211, 213, 17.948mm, 13 vane, rotor id mark = 2 dimples, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	No Longer Available
212	24219539 2005-2005	Rotor Pkg, A/trns Fluid Pump · T1, M30 · Part of 200, incls 201, 202, 208, 209, 211, 213, 17.961mm, 13 vane, rotor id mark = 2 dimples, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	No Longer Available
212	24219541 2005-2005	Rotor Pkg, A/trns Fluid Pump · T1, M30 · Part of 200, incls 201, 202, 208, 209, 211, 213, 17.987mm, 13 vane, rotor id mark = 2 dimples, 4.224, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	Back Ordered	$65.81 Request Part Howdy! If you'd like to be notified when 24219541 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
212	24219542 2005-2005	Rotor Pkg, A/trns Fluid Pump · T1, M30 · Part of 200, incls 201, 202, 208, 209, 211, 213, 18.00mm, 13 vane, rotor id mark = 2 dimples, 4.224, must use slides with 1 dimple & rotors with 2 dimples AS A set or slides & rotors with NO dimples AS A set	Back Ordered	$65.19 Request Part Howdy! If you'd like to be notified when 24219542 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
213	08631280 2005-2005	Vane, A/trns Fluid Pump · T1, M30 · Need: 13 · Min Order Qty: 10 · Part of 200, 212	Currently Unavailable	$0.49
214	2005-2005	Shaft, Stator · T · Part of 215	Currently Unavailable
215	12491418 2005-2005	Cover Kit, A/trns Fluid Pump · T1, LL8,M30 · Incls 214, 216-227, 230, 234-240	No Longer Available

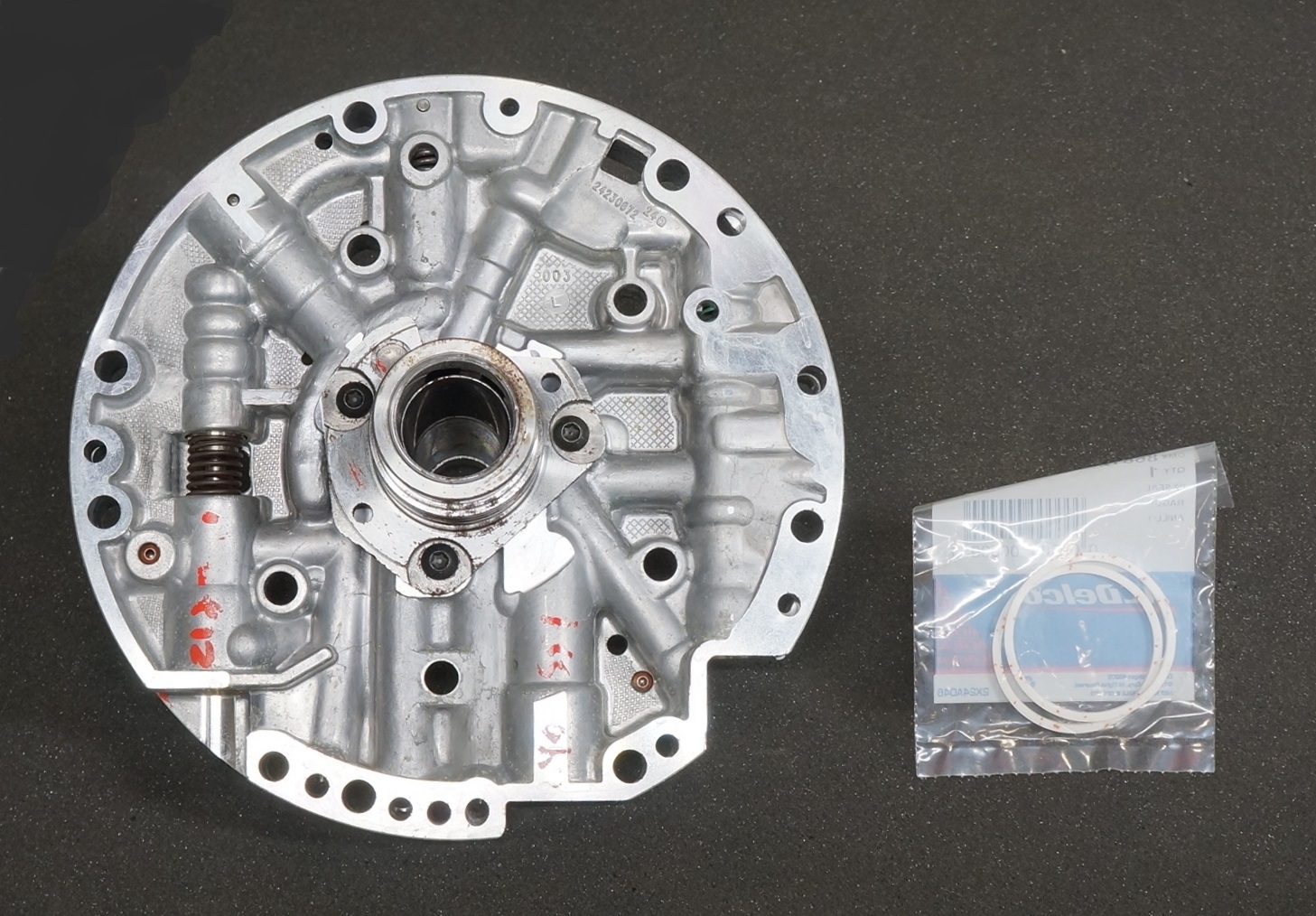

215	12491420 2005-2005	Cover Kit, A/trns Fluid Pump · T1, LH6,M30 · Incls 214, 216-227, 230, 234-240	Back Ordered	$421.66 Request Part Howdy! If you'd like to be notified when 12491420 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
216	08684049 2005-2005	Valve, Press Reg · T1, M30 · Part of 215, 4.216	Back Ordered	$2.60 Request Part Howdy! If you'd like to be notified when 08684049 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
217	08680682 2005-2005	Spring, Press Reg Vlv Otr · T1, M30 · Part of 215, 4.216	Back Ordered	$6.60 Request Part Howdy! If you'd like to be notified when 08680682 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
218	08680684 2005-2005	Spring, Press Reg Vlv Inr · T1, M30 · Part of 215	Back Ordered	$6.24 Request Part Howdy! If you'd like to be notified when 08680684 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
223	08634705 2005-2005	Stop, Tcc Vlv · T1, M30 · Part of 215, 4.216	Back Ordered	$9.86 Request Part Howdy! If you'd like to be notified when 08634705 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
224	24232106 2005-2005	Valve, Tcc · T1, M30 · 2nd des, part of 215, use on vehicles built on or after 01-01-05, for 1st des see 24205509	Back Ordered	$19.76 Request Part Howdy! If you'd like to be notified when 24232106 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
224	24234138 2005-2005	Valve, Tcc · T1, M30 · Part of 215, incls 24232105 ttc spring, 24232106 vlv & inst sht	Currently Unavailable
225	24201610 2005-2005	Spring, Tcc Vlv Inr · T1, M30 · 1st des, part of 215, 4.216, use on vehicles built 12-31-04 and prior, use T/W 24201611 otr spring T/W 24205509 vlv, for 2nd des see 24232105	No Longer Available
226	24201611 2005-2005	Spring, Tcc Vlv Otr · T1, M30 · 1st des, part of 215, 4.216, use on vehicles built 12-31-04 and prior, use T/W 24201610 inr spring T/W 24205509 vlv, for 2nd des see 24232105	No Longer Available
226	24232105 2005-2005	Spring, Tcc Vlv Otr · T1, M30 · 2nd des, part of 215, use on vehicles built on or after 01-01-05, for 1st des see 24201611	No Longer Available
227	08642619 2005-2005	Rivet, Press Rlf Ball Vlv Spr · T1, M30 · Part of 215, 4.216	No Longer Available
228	07826284 2005-2005	Ball, 3/8" Dia Steel · T · Min Order Qty: 10 · Clu press rlf vlv	Back Ordered	$3.11 Request Part Howdy! If you'd like to be notified when 07826284 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
229	08634106 2005-2005	Spring, Press Rlf Ball Vlv · T1, M30	Back Ordered	$8.89 Request Part Howdy! If you'd like to be notified when 08634106 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
230	08681292 2005-2005	Ring, Rev Input Clu Hsg Fluid Seal · T1, M30 · Need: 2 · Part of 215	Back Ordered	$11.50 Request Part Howdy! If you'd like to be notified when 08681292 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
231	08642581 2005-2005	Seal, A/trns Fluid Pump Cover Scrn · T1, M30 · Min Order Qty: 10 · Part of 232	Back Ordered	$3.88 Request Part Howdy! If you'd like to be notified when 08642581 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
232	08642912 2005-2005	Screen, A/trns Fluid Pump Cover · T1, M30 · Incls 231	Back Ordered	$10.06 Request Part Howdy! If you'd like to be notified when 08642912 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
233	11500921 2005-2005	Bolt, Hex, M8X1.25X40, 33.2Thd, Header Pt, 10.9, Pressure Control · T · Need: 5 · Min Order Qty: 10 · A/trns fluid pump cvr	Back Ordered	$10.13 Request Part Howdy! If you'd like to be notified when 11500921 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
234	08647954 2005-2005	Bushing, Input Shf Front · T1, M30 · Part of 215	Back Ordered	$20.44 Request Part Howdy! If you'd like to be notified when 08647954 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
235	08623886 2005-2005	Plug, A/trns Fluid Pump Cover · T1, M30 · Need: 7 · Part of 215, 6.80mm dia	Back Ordered	$5.03 Request Part Howdy! If you'd like to be notified when 08623886 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
236	08623886 2005-2005	Plug, A/trns Fluid Pump Cover · T1, M30 · Need: 7 · Part of 215, 6.80mm dia	Back Ordered	$5.03 Request Part Howdy! If you'd like to be notified when 08623886 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
238	08634284 2005-2005	Orifice, Tcc Sig · T1, M30 · Part of 215, 4.85mm dia	Back Ordered	$11.62 Request Part Howdy! If you'd like to be notified when 08634284 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
240	24203787 2005-2005	Orifice, 3-4 Clu Bl · T1, M30 · Need: 2 · Part of 215, 4.3mm dia	Back Ordered	$7.64 Request Part Howdy! If you'd like to be notified when 24203787 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
241	08642904 2005-2005	Bushing, Input Shf Rr · T1, M30	Back Ordered	$28.24 Request Part Howdy! If you'd like to be notified when 08642904 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
242	24241470 2005-2005	Bushing, T/cv · T1, M30 · Part of 200	Back Ordered	$7.59 Request Part Howdy! If you'd like to be notified when 24241470 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
243	24202535 2005-2005	Seal, T/cv Fluid · T1, M30 · Part of 200	Back Ordered	$12.85 Request Part Howdy! If you'd like to be notified when 24202535 is available again, simply provide your email below. Thanks, The eSaabParts.com Team Part Number E-Mail
245	2005-2005	Spring, A/trns Fluid Pump Slide Otr · T	Currently Unavailable
900	2005-2005	Bolt, Stat Shf · T	Currently Unavailable
